| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance @ Vr, F | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Supplier Device Package |

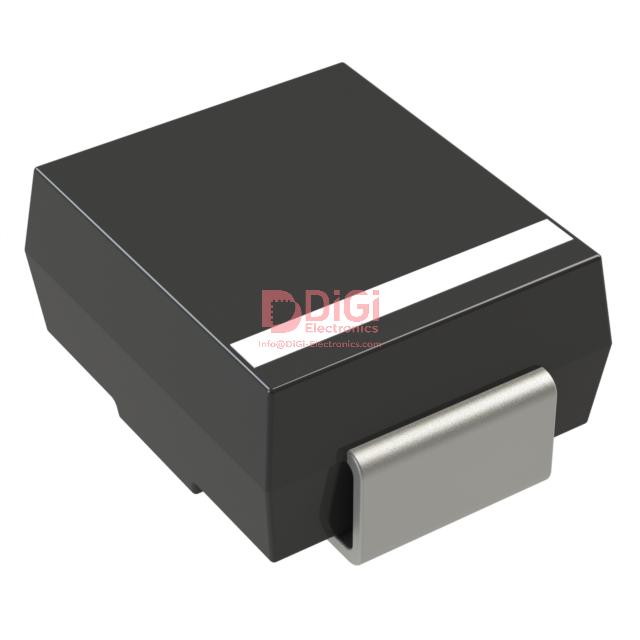

The S3DB13 is a general purpose diode manufactured by Diodes Incorporated. This component is designed for rectification applications and offers a maximum reverse voltage of 200V and an average rectified output current of 3A.
With a forward voltage of 1.15V at 3A and a reverse leakage current of 10 µA at 200V, the S3DB13 provides reliable performance. Its standard recovery speed is greater than 500ns. The diode has a capacitance of 40pF at 4V and 1MHz.
This diode is packaged in an SMB (DO-214AA) case and is designed for surface mounting. It operates within a temperature range of -65°C to 150°C, making it suitable for a variety of environmental conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.25 | $0.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum reverse voltage for the S3DB13 diode is 200V.
The average rectified output current of the S3DB13 diode is 3A.
The forward voltage of the S3DB13 diode at 3A is a maximum of 1.15V.
The reverse leakage current for the S3DB13 diode at 200V is 10 µA.
The capacitance of the S3DB13 diode at 4V and 1MHz is 40pF.
The S3DB13 diode is in an SMB (DO-214AA) package.
The operating temperature range for the S3DB13 diode is -65°C to 150°C.
