| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
73 pcs
|
73 pcs | On Request | 50 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Failure Rate | |
| Number of Pins | |
| Operating Temperature | |
| Rated Voltage | |
| Tape & Reel |

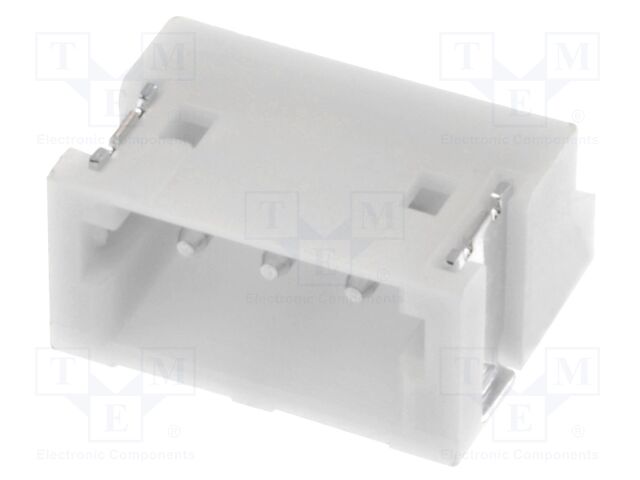

This JST Manufacturing S3B-ZR-SM4A-TF (LF)(SN) is a wire-to-board connector with a socket gender and male contact type. It is designed for surface mount technology (SMT) with a horizontal spatial orientation. The connector has 3 positions and a pitch of 1.5mm, making it suitable for compact electronic designs.
Electrically, it is rated for a current of 1A and a voltage of 50V. The operating temperature range is from -25°C to 85°C. This series is part of the ZH family from JST Manufacturing.
The connector is supplied on a reel with a standard package quantity of 1000 pieces. It is classified under Terminal Block Adapters within the Connectors, Interconnects category.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 3 positions.
The contact pitch is 1.5mm.
The current rating is 1A.
The rated voltage is 50V.
The operating temperature range is -25°C to 85°C.
It uses SMT mounting.
