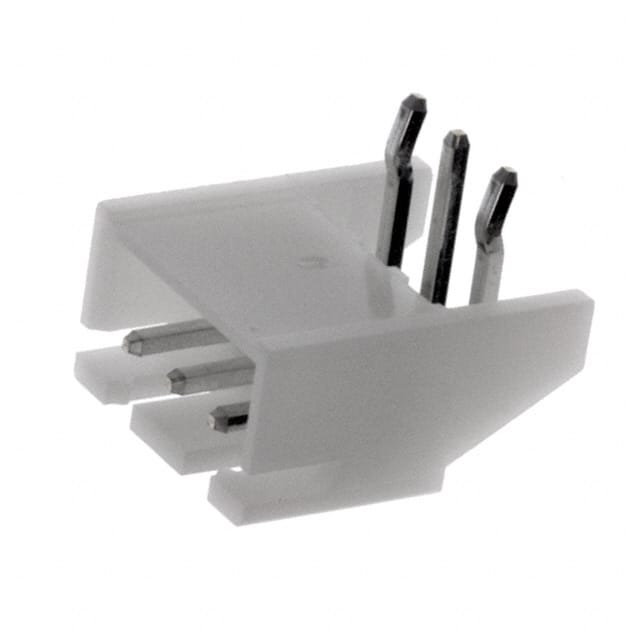

The S3B-XH-A(LF)(SN) is a 3-position, single-row header with a 2.50mm pitch, designed for board-to-cable/wire applications. It features male square pins with tin-plated brass contacts and a natural polyamide (PA66/Nylon 6/6) insulator with UL94 V-0 flammability rating. The header is shrouded with a 4-wall design and includes a detent lock for secure mating. Mounting is through-hole, right-angle, with press-fit and solder termination options. Electrical ratings are 3A current and 250V voltage, with an operating temperature range of -25°C to 85°C. The insulation height is 6.10mm and contact length is 3.40mm. This component is part of the JST XH series, commonly used in consumer electronics and low-power signal wiring.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.18 | $0.18 |
| 10+ | $0.15 | $0.15 |
| 100+ | $0.13 | $0.13 |
| 250+ | $0.12 | $0.12 |
| 1,000+ | $0.11 | $0.11 |
| 3,000+ | $0.10 | $0.10 |
| 5,000+ | $0.10 | $0.10 |
| 10,000+ | $0.09 | $0.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
2.50mm (0.098 inches).
3A.
250V.
Through hole, right angle.
-25°C to 85°C.
Tin.
