| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
38,000 pcs
|
38000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating | |
| Withstanding Voltage |

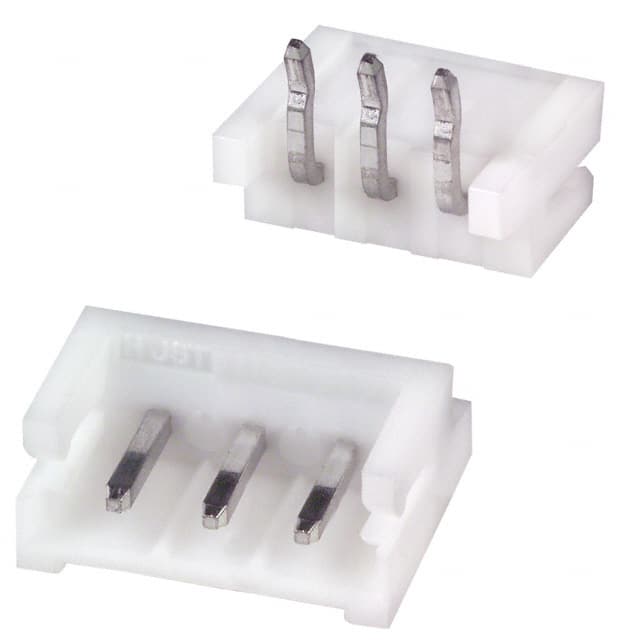

The JST S3B-EH is a 3-position, single row, right angle header from the EH series, featuring a 2.5mm pitch. It is designed for wire-to-board connections and offers a low-profile, space-saving solution for high-density PCB layouts.
This header is rated for 3A (AWG #22) and 250V AC/DC, with an operating temperature range of -25°C to +85°C. The contacts are made of brass with a tin-lead finish, and the insulator is natural polyamide (PA66/Nylon 6/6) with a UL94 V-0 flammability rating. The shrouded 3-wall design and latch lock fastening provide secure mating and prevent misinsertion.
Termination options include through hole solder and press-fit, accommodating PC board thicknesses from 0.8mm to 1.6mm. The applicable wire range is AWG #32 to AWG #22 with an insulation O.D. of 0.5mm to 1.9mm. Contact resistance is 10 mΩ max initial, and insulation resistance is 1000 MΩ min.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.13 | $0.13 |
| 10+ | $0.11 | $0.11 |
| 100+ | $0.09 | $0.09 |
| 500+ | $0.08 | $0.08 |
| 1,000+ | $0.08 | $0.08 |
| 5,000+ | $0.07 | $0.07 |
| 10,000+ | $0.07 | $0.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The S3B-EH has 3 positions, all loaded, in a single row.
The pitch is 2.50 mm (0.098 inches).
The current rating is 3 A (with AWG #22 wire) and the voltage rating is 250 V AC/DC.
The mounting type is through hole, right angle, with solder or press-fit termination.
The operating temperature range is -25°C to +85°C.
Yes, the datasheet indicates RoHS2 compliance.
