| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Under-Voltage Lockout Turn-Off Threshold | |
| Input Under-Voltage Lockout Turn-On Threshold | |
| Input Voltage | |
| Isolation Voltage | |
| Length | |
| Maximum Input Current | |
| Mounting Type | |
| No Load Input Current | |
| Number of Outputs | |
| Operating Temperature | |
| Operating Temperature (Ambient) | |
| Output Voltage | |
| Power (Watts) | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

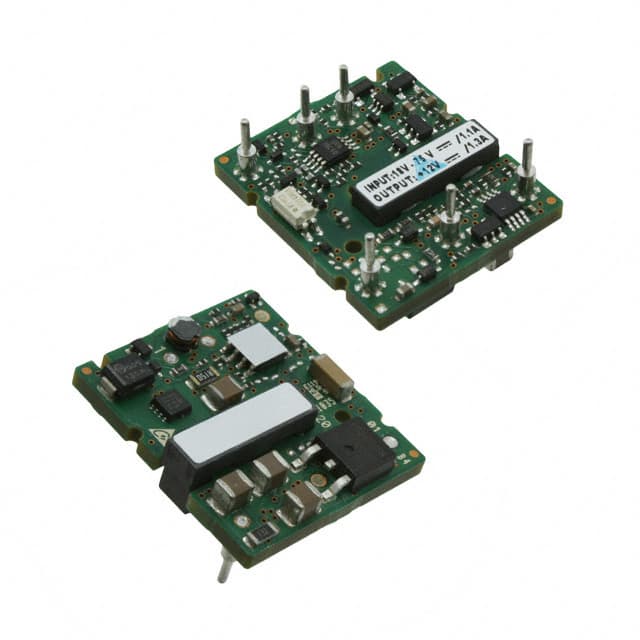

The Delta Electronics S36SE12002PRFZ is a high-efficiency isolated DC-DC converter module from the Delphi S36SE series. It delivers a regulated 12V output at up to 2A (25W) from a wide 36-75V input range, making it suitable for telecom, networking, and industrial applications.
Key electrical specifications include a typical efficiency of 87% at full load, 2250Vdc input-to-output isolation, and input under-voltage lockout (UVLO) with turn-on at 32-35V and turn-off at 30-33V. The module is fully protected with output over-current (OCP), over-voltage (OVP), over-temperature (OTP), and UVLO. Control features include remote on/off with active-high enable.
The converter is housed in a standard 1x1 inch 6-DIP through-hole package measuring 27.9mm x 24.4mm x 8.7mm. It operates over an ambient temperature range of -40°C to +85°C with appropriate derating, and can be stored from -55°C to +125°C. The module requires no minimum load and supports monotonic startup into pre-biased loads.
The input voltage range is 36 to 75V DC.
It provides a regulated 12V output at up to 2A, delivering 25W of power.
Typical efficiency is 87% at 48V input and 2A load.
The isolation voltage is 2250Vdc.
It comes in a 6-DIP module with through-hole mounting.
The operating ambient temperature range is -40°C to +85°C with appropriate derating.
The part is listed as RoHS3 Compliant, but this status is unverified.
