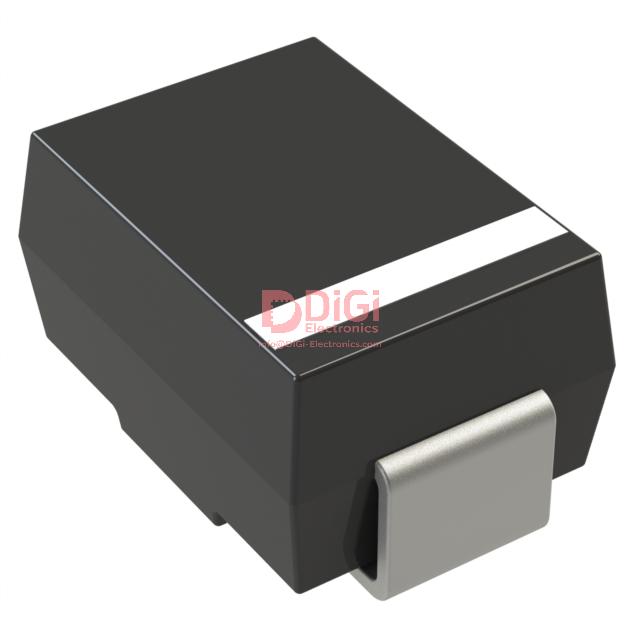

S2MA13-F The Diodes Incorporated S2MA13-F is a general purpose rectifier with a 1000V reverse voltage rating and 1.5A average rectified current. It is supplied in an SMA surface mount package.
Mfr Part #:

S2MA13-F

Available from 1 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
The Diodes Incorporated S2MA13-F is a general purpose rectifier with a 1000V reverse voltage rating and 1.5A average rectified current. It is supplied in an SMA surface mount package.
✓ Total Stock: 89 pcs
$ Price Range: $0.53

S2MA13-F Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
89 pcs
On Request
89 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

S2MA13-F Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance @ Vr, F
Mounting Type
Speed
Supplier Device Package
View Similar Products (0)

S2MA13-F Description

Short technical summary and product information.

The S2MA13-F from Diodes Incorporated is a general purpose rectifier designed for various electronic applications. It features a maximum DC reverse voltage rating of 1000V and an average rectified current handling capability of 1.5A.



This rectifier has a forward voltage of 1.15V at 1.5A and a reverse leakage current of 5µA at 1000V. Its speed is characterized as standard recovery, with a time greater than 500ns for loads over 200mA. The capacitance is rated at 20pF at 4V and 1MHz.



Designed for surface mounting, the S2MA13-F comes in a DO-214AC, SMA package. The operating junction temperature ranges from -65°C to 150°C, making it suitable for a wide array of environmental conditions. The component is classified under Diodes - RF category.

S2MA13-F Quick Information

Product Type: Rectifier
Canonical Name: S2MA13-F General Purpose Rectifier
Subcategory: Rectifier

S2MA13-F Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

S2MA13-F Estimated Pricing

Qty Low High
1+ $0.53 $0.53

Estimated market price range - modelled values for guidance only, not live distributor offers.

S2MA13-F Features

  • 1000V maximum reverse voltage.
  • 1.5A average rectified current.
  • 1.15V maximum forward voltage.
  • Surface mount SMA package.
  • -65°C to 150°C operating temperature.

S2MA13-F Applications

  • Suitable for general purpose rectification.
  • Ideal for power supply circuits.
  • Used in voltage regulation applications.
  • Applicable in signal processing circuits.

S2MA13-F FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum reverse voltage for the S2MA13-F?

The S2MA13-F has a maximum DC reverse voltage rating of 1000V.

What is the average rectified current of the S2MA13-F?

The S2MA13-F can handle an average rectified current of 1.5A.

What is the forward voltage drop of the S2MA13-F at 1.5A?

The maximum forward voltage drop for the S2MA13-F at 1.5A is 1.15V.

What type of package is the S2MA13-F supplied in?

The S2MA13-F is supplied in a DO-214AC, SMA surface mount package.

What is the operating temperature range for the S2MA13-F?

The S2MA13-F operates between -65°C and 150°C.
