Mfr Part #:

S29GL01GP13TFIV10

Mfr Name: Spansion

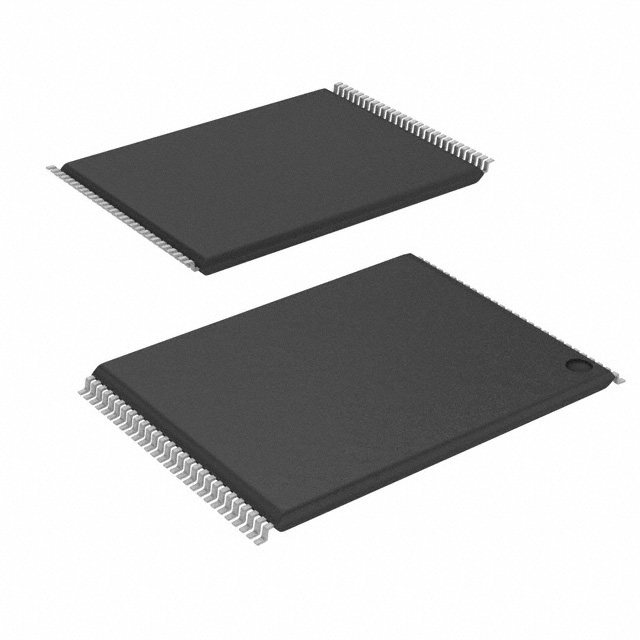

The Spansion S29GL01GP13TFIV10 is a 128 Mbit page Flash memory utilizing 90nm MirrorBit process technology. It offers fast access times and a write buffer for efficient programming.

✓ Total Stock: 6,873 pcs

S29GL01GP13TFIV10 Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Optech Co.,Limited ✓ Non-Authorised Inventory information	6,300 pcs On Request	6300 pcs	On Request	1	On Request	On Request	09+	On Request	On Request
Smaxon Electronics ✓ Non-Authorised Inventory information	573 pcs On Request	573 pcs	On Request	1	On Request	On Request	09+	On Request	On Request

S29GL01GP13TFIV10 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Spansion
Industrial Grade	Yes
Interface	Versatile I/O
Lead Style	Gull Wing
Mounting Type	Surface Mount
Package / Case	TSOP / BGA

View Similar Products (0)

S29GL01GP13TFIV10 Description

Short technical summary and product information.

The Spansion S29GL01GP13TFIV10 is a high-performance page Flash memory device based on the 90nm MirrorBit process technology. It provides a density of 128 Mbit and operates from a single 3V supply (2.7-3.6 V).

Key electrical characteristics include a fast page access time of 25 ns and a random access time as fast as 90 ns. The device features a 32-word/64-byte write buffer, which significantly reduces overall programming time for multiple-word updates, making it ideal for embedded applications requiring higher density and better performance.

This Flash memory offers a uniform 64 Kword/128 Kbyte sector architecture and supports a typical 100,000 erase cycles per sector with 20-year data retention. It is available in 56-pin TSOP and 64-ball Fortified BGA packages, suitable for surface mount applications.

The S29GL01GP13TFIV10 also incorporates enhanced Versatile I/O control, where input levels and outputs are determined by the VIO input voltage, ranging from 1.65V to VCC. It supports Suspend and Resume commands for program and erase operations, along with write operation status bits for completion indication.

S29GL01GP13TFIV10 Quick Information

Product Type: Flash Memory

Series: S29GL-P

Canonical Name: S29GL01GP13TFIV10 128 Mbit, 3 V, Page Flash Memory

Subcategory: Flash Memory

S29GL01GP13TFIV10 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

S29GL01GP13TFIV10 Features

128 Mbit page Flash memory.
90nm MirrorBit process technology.
Fast 25ns page access time.
64-byte write buffer for efficient programming.
2.7V to 3.6V single supply operation.

S29GL01GP13TFIV10 Applications

Ideal for embedded applications.
Suitable for high-density storage needs.
Supports fast programming requirements.
Designed for performance-driven systems.

S29GL01GP13TFIV10 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the operating voltage range of the S29GL01GP13TFIV10?

The device supports a VCC range of 2.7V to 3.6V, with a regulated VCC mode of 3.0V to 3.6V. The Versatile I/O (VIO) range is 1.65V to VCC when VCC is 2.7-3.6V.

What package options are available for the S29GL01GP13TFIV10?

The device is available in TSOP and BGA packages, both surface mount.

What is the erase endurance of the S29GL01GP13TFIV10?

The device supports 100,000 erase cycles per sector typical.

What is the data retention of the S29GL01GP13TFIV10?

The device offers 20-year data retention typical.

What are the access times for the S29GL01GP13TFIV10?

Random access time is 90 ns (regulated VCC), page access time is 25 ns, and output enable access time is 25 ns.

What is the write buffer size of the S29GL01GP13TFIV10?

The device has a 64-byte write buffer.

What is the sector architecture of the S29GL01GP13TFIV10?

The device uses uniform 64 Kword (128 Kbyte) sectors.
