| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
183,250 pcs
|
183250 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request | |
|
1,300 pcs
|
1300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Attachment Method | |
| Height | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Plating | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Width |

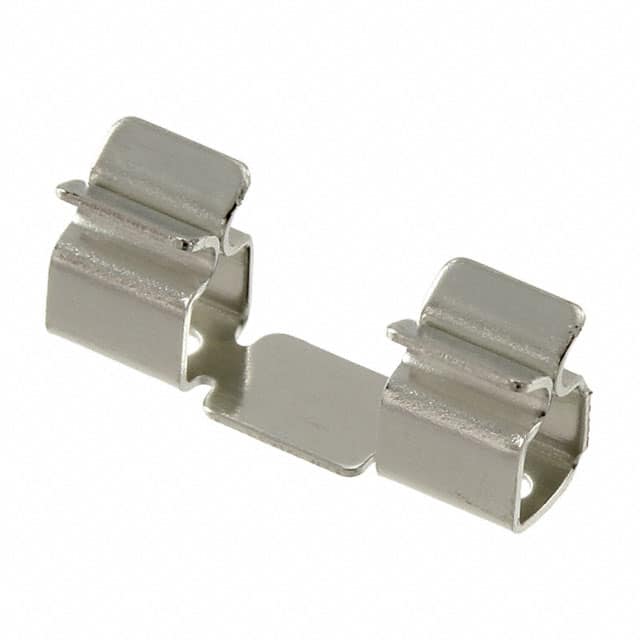

The Harwin Inc. S2711-46R is a Midi size Surface Mount Technology (SMT) shield clip designed for EMI/RFI shielding applications. It is constructed from a Copper Alloy with a Tin finish on the contact area and termination, offering a durable and reliable solution.
This shield clip is suitable for shield thicknesses ranging from 0.17mm to 0.30mm. It features a compact design with dimensions of 8.79mm in length, 2.28mm in width, and 3.55mm in height. The operating temperature range is -40°C to 125°C, making it suitable for various environmental conditions.
The S2711-46R is designed for solder attachment and is packaged in Tape and Reel for automated placement, facilitating efficient manufacturing processes. Its SMT design eliminates the need for through holes and post-reflow operations, saving valuable PCB real estate and simplifying assembly.
This clip is an alternative to Beryllium Copper and is part of Harwin's range of RFI Shield Clips, offering a fast and effective solution for assembling RFI shields to PCBs. It facilitates easy removal of the can for maintenance and repair, improving the simplicity of assembly tuning and rework.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The S2711-46R is a Shield Clip.
The shield clip has a length of 8.79mm, a width of 2.28mm, and a height of 3.55mm.
The shield clip is made of Copper Alloy.
The operating temperature range is -40°C to 125°C.
The S2711-46R supports shield thicknesses from 0.17mm to 0.30mm.
The S2711-46R is a surface mount component with solder attachment.
