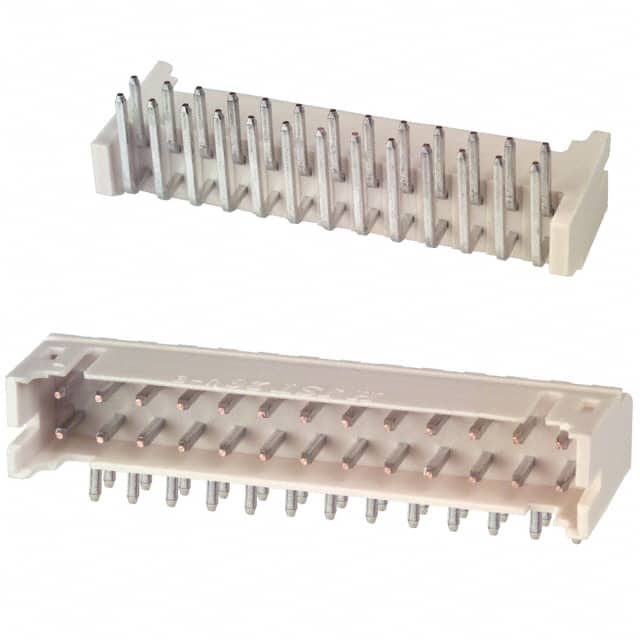

The JST S26B-PHDSS(LF)(SN) is a 26-position shrouded header from the PHD series, designed for board-to-cable/wire connections. It features a 2.00mm pitch and 2.00mm row spacing, with a right angle through hole mounting style for space-constrained PCB layouts. The header is fully shrouded with 4 walls and includes a detent lock fastening mechanism for secure mating.
Electrical ratings are 3A per contact and 250V, with an operating temperature range of -25°C to 85°C. Contacts are made of copper alloy with tin plating, and the insulation is glass-filled polyamide (nylon) in natural color, rated UL94 V-0 for flammability. All 26 positions are loaded, and the termination is solder.
This connector is suitable for high-density applications requiring reliable interconnection in industrial, consumer, and automotive electronics. The right angle orientation allows for low-profile cable exits.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.03 | $1.03 |
| 10+ | $0.88 | $0.88 |
| 100+ | $0.71 | $0.71 |
| 200+ | $0.71 | $0.71 |
| 600+ | $0.66 | $0.66 |
| 1,000+ | $0.63 | $0.63 |
| 2,600+ | $0.59 | $0.59 |
| 5,000+ | $0.56 | $0.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
26 positions.
2.00mm (0.079 inches).
3A per contact.
250V.
Through hole, right angle.
-25°C to 85°C.
Yes, fully shrouded with 4 walls.
