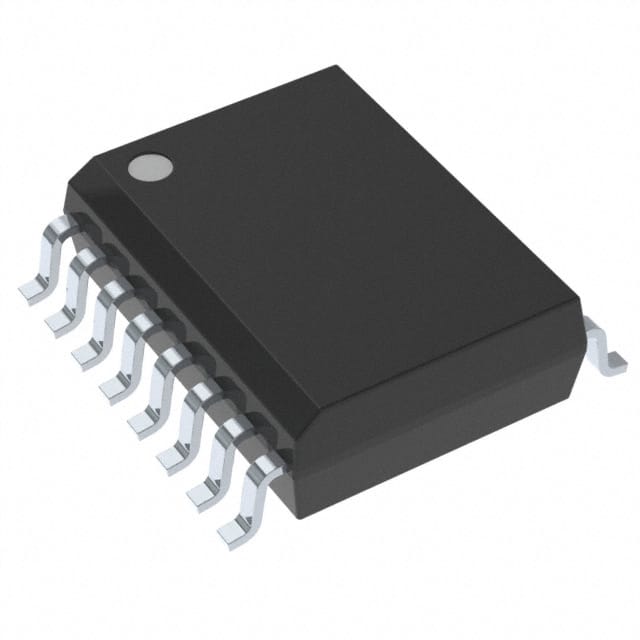

S25FL512SAGMFVG10 The Infineon Technologies S25FL512SAGMFVG10 is a 512Mb SPI Quad I/O NOR Flash memory. It operates with a voltage range of 2.7V to 3.6V and a clock frequency of up to 133 MHz.
Mfr Part #:

S25FL512SAGMFVG10

Available from 1 distributors
Mfr Name: Infineon Technologies
Infineon Technologies
The Infineon Technologies S25FL512SAGMFVG10 is a 512Mb SPI Quad I/O NOR Flash memory. It operates with a voltage range of 2.7V to 3.6V and a clock frequency of up to 133 MHz.
✓ Total Stock: 303,000 pcs
$ Price Range: $9.86

S25FL512SAGMFVG10 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
303,000 pcs
On Request
303000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

S25FL512SAGMFVG10 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Clock Frequency
Memory Format
Memory Interface
Memory Organization
Memory Size
Memory Type
Mounting Type
Operating Temperature
SVHC Present
Supplier Device Package
Technology
Voltage
View Similar Products (0)

S25FL512SAGMFVG10 Description

Short technical summary and product information.

The Infineon Technologies S25FL512SAGMFVG10 is a 512Mb (64MB) FL-S series NOR Flash memory device. It utilizes a versatile CMOS 3.0V core with SPI Multi-I/O capabilities, supporting Quad I/O for enhanced data transfer rates.



This memory component operates within a voltage range of 2.7V to 3.6V for the core and 1.65V to 3.6V for I/O. It features a maximum clock frequency of 133 MHz, enabling high-speed read operations. The device offers 100,000 program-erase cycles and 20-year data retention, ensuring reliability and longevity.



Available in a 16-SOIC package, the S25FL512SAGMFVG10 is designed for surface mount applications. It supports various operating temperature ranges, including industrial (-40°C to +85°C) and automotive grades up to +125°C. Security features such as block protection and advanced sector protection are also included.



This flash memory is suitable for applications requiring high-density, non-volatile storage with efficient serial interface communication.

S25FL512SAGMFVG10 Quick Information

Product Type: SPI Flash Memory
Series: S25FL512S
Canonical Name: Infineon Technologies S25FL512S 512 Mb FL-S Flash SPI Multi-I/O, 3.0 V
Subcategory: NOR Flash

S25FL512SAGMFVG10 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

S25FL512SAGMFVG10 Estimated Pricing

Qty Low High
1+ $9.86 $9.86

Estimated market price range - modelled values for guidance only, not live distributor offers.

S25FL512SAGMFVG10 Features

  • 512Mb density NOR Flash memory
  • SPI Quad I/O interface
  • 133 MHz maximum clock frequency
  • 2.7V to 3.6V operating voltage
  • 16-SOIC surface mount package

S25FL512SAGMFVG10 Applications

  • High-density data storage
  • Embedded system applications
  • Automotive electronics
  • Industrial control systems

S25FL512SAGMFVG10 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the memory size of the S25FL512SAGMFVG10?

The memory size is 512Mbit.

What type of memory is the S25FL512SAGMFVG10?

It is a Non-Volatile FLASH - NOR memory.

What is the interface for the S25FL512SAGMFVG10?

The memory interface is SPI - Quad I/O.

What is the operating voltage range for this flash memory?

The operating voltage range is 2.7V to 3.6V.

What is the maximum clock frequency supported?

The maximum clock frequency is 133 MHz.

What are the available operating temperature ranges?

Available temperature ranges include Industrial (-40°C to +85°C), Industrial Plus (-40°C to +105°C), Automotive Grade 3 (-40°C to +85°C), Automotive Grade 2 (-40°C to +105°C), and Automotive Grade 1 (-40°C to +125°C).

What is the package type for the S25FL512SAGMFVG10?

The package type is 16-SOIC (0.295", 7.50mm Width) and it is a surface mount device.
