S25FL128P0XMFI001 The Spansion S25FL128P0XMFI001 is a 128Mbit SPI Flash Memory device. It features a 104MHz clock rate and operates on a single 2.7V to 3.6V power supply.
Mfr Part #:

S25FL128P0XMFI001

Available from 2 distributors
Mfr Name: Spansion
Spansion
The Spansion S25FL128P0XMFI001 is a 128Mbit SPI Flash Memory device. It features a 104MHz clock rate and operates on a single 2.7V to 3.6V power supply.
✓ Total Stock: 5,284 pcs

S25FL128P0XMFI001 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
5,050 pcs
On Request
5050 pcs On Request 1 On Request On Request 11+ On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
234 pcs
On Request
234 pcs On Request 1 On Request On Request 10+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

S25FL128P0XMFI001 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Clock Frequency
Industrial Grade
Interface
Lead Style
Memory Organization
Memory Size
Memory Type
Mounting Type
Operating Temperature
Operating Voltage
SVHC Present
Tape & Reel
Write Cycle Time
View Similar Products (0)

S25FL128P0XMFI001 Description

Short technical summary and product information.

The S25FL128P0XMFI001 from Spansion is a 128-Mbit non-volatile Flash memory device utilizing a SPI serial interface. It supports a maximum clock frequency of 104 MHz and operates within a voltage range of 2.7V to 3.6V.



This memory device offers various programming and erase capabilities, including Page Program (up to 256 bytes) in 1.5 ms typical and sector erase times as low as 0.5s for 64KB sectors. It is designed for 100,000 program/erase cycles per sector with a data retention of 20 years typical.

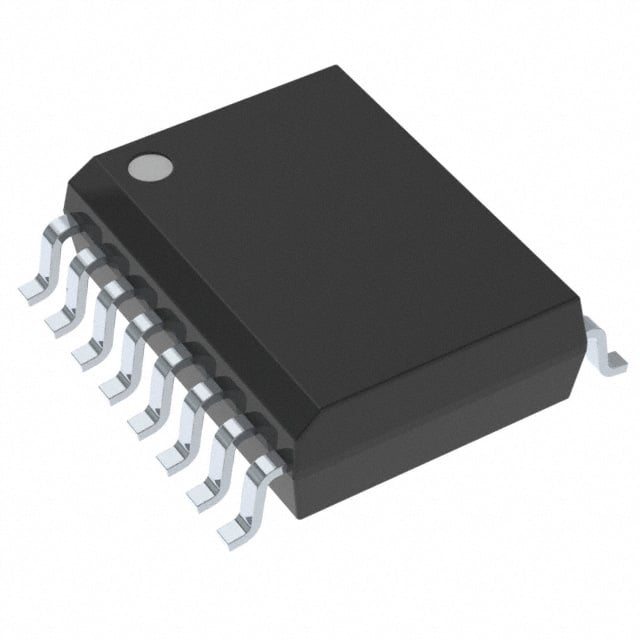

The S25FL128P0XMFI001 is available in a 16-pin SOIC package suitable for surface mounting. It also features power-saving modes, including a Standby Mode drawing 200 µA maximum and a Deep Power Down Mode consuming 3 µA typical.



This product is not recommended for new and current designs, with the S25FL128S superseding it. For new designs, please refer to the S25FL128S datasheet.

S25FL128P0XMFI001 Quick Information

Product Type: Flash Memory
Series: FL-P
Canonical Name: 128-Mbit SPI Flash Memory
Subcategory: Flash Memory

S25FL128P0XMFI001 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

S25FL128P0XMFI001 Features

  • 128Mbit SPI Flash Memory
  • 104MHz maximum clock rate
  • 2.7V to 3.6V single power supply
  • 100,000 cycles per sector endurance
  • 20 years typical data retention

S25FL128P0XMFI001 Applications

  • Suitable for embedded systems
  • Used in data storage applications
  • Ideal for firmware storage
  • Applications requiring non-volatile memory

S25FL128P0XMFI001 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the memory size of the S25FL128P0XMFI001?

The memory size is 128Mbit.

What type of memory is the S25FL128P0XMFI001?

It is a Flash memory.

What is the interface used by the S25FL128P0XMFI001?

The interface is SPI.

What is the maximum clock frequency for this Flash memory?

The maximum clock frequency is 104 MHz.

What is the operating voltage range for the S25FL128P0XMFI001?

The operating voltage range is 2.7V to 3.6V.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

What is the typical data retention period for this memory?

The typical data retention period is 20 years.
