S25FL116K0XNFI013 The S25FL116K0XNFI013 is a 16 Mbit NOR Flash memory from Cypress Semiconductor. It features a SPI Quad I/O interface, 108 MHz clock frequency, and operates from 2.7V to 3.6V.
Mfr Part #:

S25FL116K0XNFI013

Available from 1 distributors
Mfr Name: Cypress Semiconductor
Cypress Semiconductor
The S25FL116K0XNFI013 is a 16 Mbit NOR Flash memory from Cypress Semiconductor. It features a SPI Quad I/O interface, 108 MHz clock frequency, and operates from 2.7V to 3.6V.
✓ Total Stock: 84,472 pcs
$ Price Range: $1.28

S25FL116K0XNFI013 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
84,472 pcs
On Request
84472 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

S25FL116K0XNFI013 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Clock Frequency
Memory Format
Memory Interface
Memory Organization
Memory Size
Memory Type
Mounting Type
Operating Temperature
Supplier Device Package
Supplier Package
Technology
Voltage
Write Cycle Time
View Similar Products (0)

S25FL116K0XNFI013 Description

Short technical summary and product information.

The S25FL116K0XNFI013 is a 16 Mbit (2M x 8) NOR Flash memory device manufactured by Cypress Semiconductor. It utilizes FLASH - NOR technology and supports SPI Quad I/O interface for high-speed data transfer.



The memory operates at a clock frequency of up to 108 MHz and requires a supply voltage between 2.7V and 3.6V. It offers a write cycle time of 3 ms and a minimum of 100,000 program-erase cycles with 20-year data retention. The device includes three 256-byte security registers with OTP protection and an 8-byte unique ID. It is specified for operation from -40°C to 85°C.

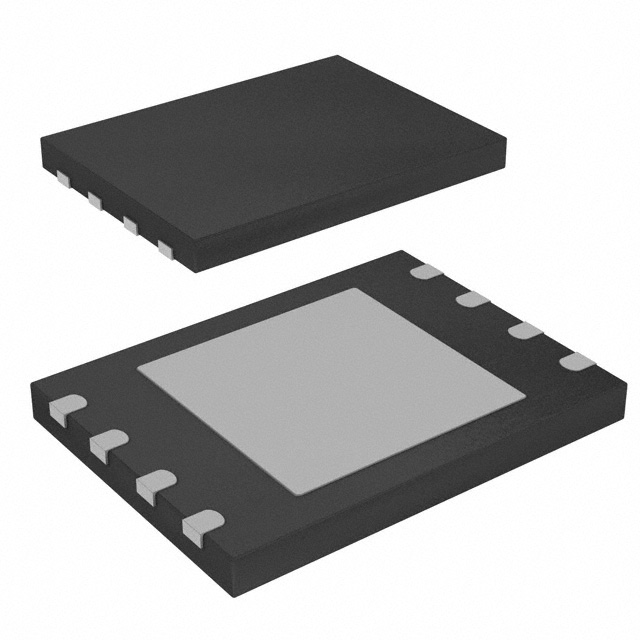

The S25FL116K0XNFI013 is available in an 8-WSON (5x6) package with an exposed pad, designed for surface mount assembly. It is supplied in tape and reel packaging.

S25FL116K0XNFI013 Quick Information

Product Type: NOR Flash Memory
Canonical Name: Cypress Semiconductor S25FL116K0XNFI013 16 Mbit FLASH - NOR Memory, SPI - Quad I/O, 8-WSON (5x6)
Subcategory: FLASH - NOR

S25FL116K0XNFI013 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

S25FL116K0XNFI013 Estimated Pricing

Qty Low High
1+ $1.28 $1.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

S25FL116K0XNFI013 Features

  • 16 Mbit NOR Flash memory capacity.
  • SPI Quad I/O interface up to 108 MHz.
  • 100K program-erase cycles endurance.
  • 20-year data retention minimum.
  • 8-WSON surface mount package.

S25FL116K0XNFI013 Applications

  • Code storage in embedded systems.
  • Data logging in industrial applications.
  • Firmware storage for microcontrollers.
  • Configuration memory for networking devices.

S25FL116K0XNFI013 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the S25FL116K0XNFI013?

2.7V to 3.6V.

What package does the S25FL116K0XNFI013 come in?

8-WSON (5x6) with exposed pad, surface mount.

What is the operating temperature range of the S25FL116K0XNFI013?

-40°C to 85°C.

What is the memory size of the S25FL116K0XNFI013?

16 Mbit (2M x 8).

What interface does this memory use?

SPI - Quad I/O.

What is the maximum clock frequency?

108 MHz.
