S20B-PUDSS-1(LF)(SN) JST PUD series 20-position 2mm pitch right-angle shrouded header with latch holder, rated 3A and 250V.
Mfr Part #:

S20B-PUDSS-1(LF)(SN)

Available from 1 distributors
Mfr Name: Jst Manufacturing
Jst Manufacturing
JST PUD series 20-position 2mm pitch right-angle shrouded header with latch holder, rated 3A and 250V.
✓ Total Stock: 65 pcs
$ Price Range: $0.36 - $0.67

S20B-PUDSS-1(LF)(SN) Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
65 pcs
On Request
65 pcs On Request 1 On Request On Request NO DC On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

S20B-PUDSS-1(LF)(SN) Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Insulation Resistance
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Termination
Termination Style
Voltage Rating
Withstanding Voltage
View Similar Products (0)

S20B-PUDSS-1(LF)(SN) Description

Short technical summary and product information.

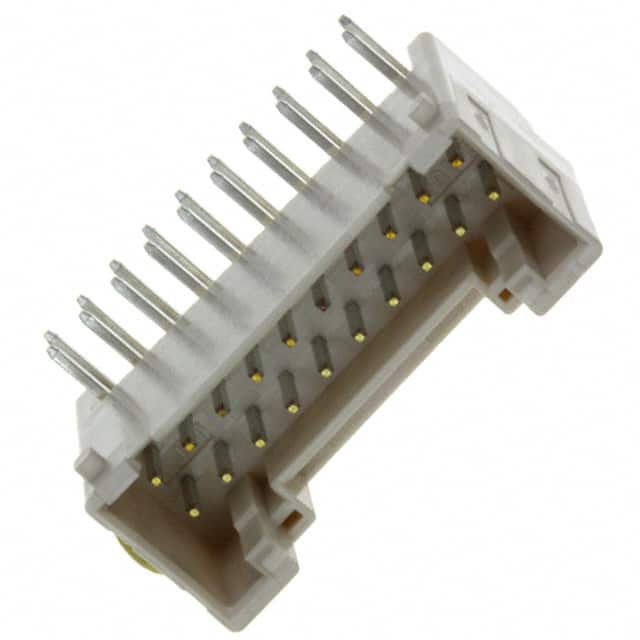

The JST PUD series S20B-PUDSS-1(LF)(SN) is a 20-position, 2-row, 2.00mm pitch right-angle through-hole header designed for board-to-cable/wire connections. It features a shrouded 4-wall design with a latch holder fastening system for secure mating. The header is rated for 3A current and 250V voltage, with an operating temperature range of -25°C to 85°C. Contacts are made of copper alloy with tin plating, and the insulation is natural polyamide (PA66) glass-filled material with a UL94 V-0 flammability rating. The header includes a board guide feature for accurate alignment during assembly. Termination is via solder, and the contact length is 3.00mm with an insulation height of 8.51mm.

S20B-PUDSS-1(LF)(SN) Quick Information

Product Type: Header, Male Pins
Series: PUD
Canonical Name: JST PUD Series Header, 20 Position, 2mm Pitch, Through Hole, Right Angle, Shrouded
Subcategory: Shrouded Header

S20B-PUDSS-1(LF)(SN) Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

S20B-PUDSS-1(LF)(SN) Estimated Pricing

Qty Low High
1+ $0.67 $0.67
10+ $0.57 $0.57
25+ $0.56 $0.56
100+ $0.48 $0.48
250+ $0.43 $0.43
1,000+ $0.40 $0.40
2,860+ $0.40 $0.40
5,720+ $0.36 $0.36

Estimated market price range - modelled values for guidance only, not live distributor offers.

S20B-PUDSS-1(LF)(SN) Features

  • 20-position 2-row right-angle header.
  • 2.00mm pitch with shrouded 4-wall design.
  • Rated for 3A current and 250V voltage.
  • Latch holder fastening for secure connection.
  • UL94 V-0 flammability rated insulation.

S20B-PUDSS-1(LF)(SN) Applications

  • Board-to-cable/wire connections in compact devices.
  • Suitable for consumer electronics and industrial equipment.
  • Use where secure locking is required.

S20B-PUDSS-1(LF)(SN) FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the S20B-PUDSS-1 have?

20 positions, all loaded.

What is the pitch of this header?

2.00mm (0.079 inches).

What is the current rating?

3A.

What is the voltage rating?

250V.

What is the mounting type?

Through hole, right angle.

What is the operating temperature range?

-25°C to 85°C.

What is the contact material and finish?

Copper alloy with tin plating.
