Mfr Part #:

S202S01F

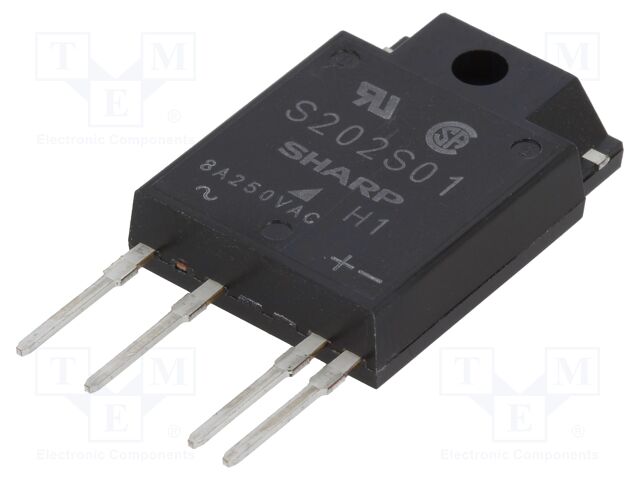

The Sharp Microelectronics S202S01F is a solid state relay with an 8A output current and a 600V AC switching voltage. It features a 4kV isolation rating and comes in a SIP4 package.

✓ Total Stock: 75 pcs

$ Price Range: $2.16

S202S01F Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Fe Components ✓ Non-Authorised Inventory information	75 pcs On Request	75 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

S202S01F Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Sharp Microelectronics
Mounting Type	Through Hole
Output Current	8A
Switching Voltage	600V AC

View Similar Products (0)

S202S01F Description

Short technical summary and product information.

The Sharp Microelectronics S202S01F is a single-phase solid state relay (SSR) designed for controlling high-voltage AC loads with reliability. It integrates an infrared emitting diode (IRED), a Phototriac Detector, and a main output Triac.

Key electrical specifications include a maximum output current of 8A (IT(rms)) and a maximum switching voltage of 600V AC. The device offers a high isolation voltage of 4.0kV (Viso(rms)) between the input and output, providing a safe interface between low-voltage DC control circuitry and high-voltage AC devices.

This SSR utilizes a non-zero crossing function. It is housed in a 4-pin SIP (Single In-line Package) suitable for through-hole mounting. The design includes a screw hole for heat sink attachment, which is recommended for managing thermal performance during operation.

Applications for the S202S01F include switching motors, fans, heaters, solenoids, and valves. It can also be used for phase or power control in lighting and temperature control equipment. The package resin meets UL flammability grade 94V-0.

S202S01F Quick Information

Product Type: Solid State Relay

Series: S202S01

Canonical Name: S202S01F Solid State Relay

Subcategory: Special Purpose Transistors

S202S01F Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

S202S01F Estimated Pricing

Qty	Low	High
1+	$2.16	$2.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

S202S01F Features

Maximum output current of 8A.
Maximum switching voltage of 600V AC.
High isolation voltage of 4.0kV.
Non-zero crossing function.
SIP4 package for through-hole mounting.

S202S01F Applications

Controls high voltage AC loads.
Switches motors, fans, and heaters.
Used in lighting control systems.
Suitable for temperature control equipment.

S202S01F FAQs

5 frequently asked questions generated from this part’s specifications.

What is the maximum output current of the S202S01F?

The maximum output current is 8A.

What is the Repetitive Peak Off-State Voltage of the S202S01F?

The Repetitive Peak Off-State Voltage is 600V.

What package does the S202S01F come in?

It comes in a SIP4 package.

What is the control current for the S202S01F?

The control current is up to 8mA.

What is the switching voltage of the S202S01F?

The switching voltage is 600V AC.
