Mfr Part #:

S200X650VATY

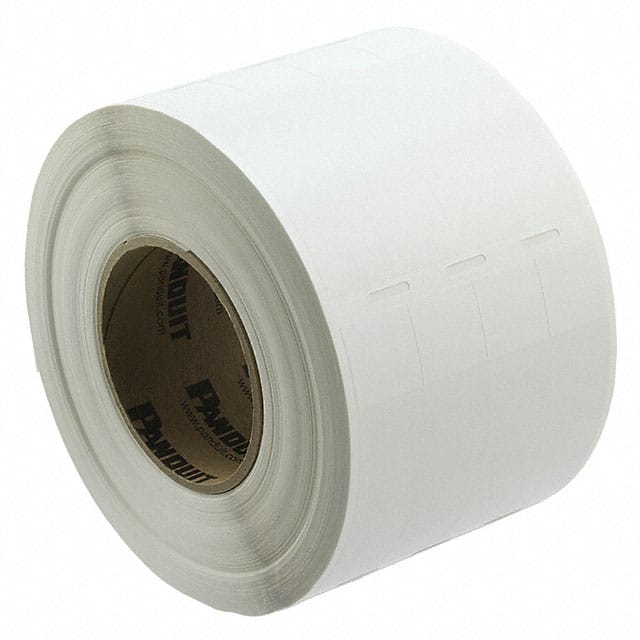

Panduit S200X650VATY is a self-laminating white vinyl label measuring 2.00" x 6.50" (50.8mm x 165.1mm). It features a pressure-sensitive acrylic adhesive and is designed for thermal transfer printing.

✓ Total Stock: 952 pcs

$ Price Range: $0.47 - $0.49

S200X650VATY Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Braun Electronic Components ✓ Non-Authorised Inventory information	952 pcs On Request	952 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

S200X650VATY Description

Short technical summary and product information.

The Panduit S200X650VATY is a self-laminating vinyl label designed for wire and cable marking applications. The label measures 2.00 inches by 6.50 inches (50.8mm x 165.1mm) and features a white translucent film with a colored print-on area. It is constructed from a self-extinguishing, top-coated vinyl film with a pressure-sensitive acrylic adhesive.

Key specifications include a thickness of 4.25 ± 0.45 mils (substrate and adhesive), a service temperature range of -40°F to 150°F (-40°C to 66°C), and a minimum application temperature of 40°F (4.4°C). The label offers a tensile strength of 3200 psi minimum (MD) and elongation of 150% minimum (MD). It provides peel adhesion to stainless steel of 32 oz/in width (15 min dwell) and 45 oz/in width (24 hrs dwell), with shear adhesion of 24+ hours.

The material is RoHS compliant and has a flammability rating with average burn time less than 10 seconds. It exhibits excellent UV resistance with no change observed after 3000 hours of accelerated exposure, equating to 5 years of outdoor UV exposure. The dielectric strength is 1900 Volts/MIL.

This label is recommended for thermal transfer printing and is compatible with the Panduit TDP43MY Thermal Transfer Desktop Printer. Store at 70°F (21°C) and 50% relative humidity.

S200X650VATY Quick Information

Product Type: Self-Laminating Label

Canonical Name: Self-Laminating Vinyl Label, 2.00" x 6.50", White, for Thermal Transfer Printing

Subcategory: Wire/Cable Marking Labels

S200X650VATY Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

S200X650VATY Estimated Pricing

Qty	Low	High
1,000+	$0.49	$0.49
2,000+	$0.47	$0.47

Estimated market price range - modelled values for guidance only, not live distributor offers.

S200X650VATY Features

Self-laminating white vinyl label.
Acrylic pressure-sensitive adhesive.
Rated for -40°F to 150°F operation.
Thermal transfer printable.
RoHS3 compliant.

S200X650VATY Applications

Ideal for wire and cable marking.
Used in industrial labeling applications.
Suitable for outdoor use with UV resistance.
For use with Panduit TDP43MY printer.

S200X650VATY FAQs

6 frequently asked questions generated from this part’s specifications.

What is the operating temperature range of this label?

The service temperature range is -40°F to 150°F (-40°C to 66°C).

Is this label RoHS compliant?

Yes, the label is RoHS3 compliant as stated in the datasheet.

What are the dimensions of the label?

The label size is 2.00" x 6.50" (50.8mm x 165.1mm).

What material is the label made of?

The label is made of self-laminating vinyl film with an acrylic-based pressure-sensitive adhesive.

What print method is recommended for this label?

Thermal transfer printing is the recommended print method.

Does the label have UV resistance?

Yes, it exhibits no change after 3000 hours of accelerated UV exposure, equating to 5 years of outdoor UV exposure.

Category	Labels, Labeling
Manufacturer Name	Panduit Corporation
Color	White
For Use With	TDP43MY Thermal Transfer Desktop Printer
Label Size	2.00" x 6.50" (50.8mm x 165.1mm)
Label Type	Self Laminating
Material	Vinyl
Storage Conditions	70°F (21°C), 50% Relative Humidity
Thickness	4.25 +/- 0.45 mils (substrate and adhesive)
