| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,243,800 pcs
|
1243800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
1,800 pcs
|
1800 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC-Q101 | |
| Capacitance | |
| Capacitance @ Vr, F | |
| Circuit Configuration | |
| Current | |
| Halogen Free | |
| Maximum DC Blocking Voltage | |
| Maximum RMS Voltage | |
| Maximum Recurrent Peak Reverse Voltage | |
| Mounting Type | |
| Non-repetitive Peak Reverse Avalanche Energy | |
| Operating Junction Temperature | |
| Operating Temperature | |
| Package Style | |
| Peak Forward Surge Current | |
| Polarity Indicator | |
| Reverse Current | |
| Reverse Recovery Time (trr) | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Terminal Finish | |
| UL Flammability | |
| Voltage |
The S1M-E3/61T is a surface-mount glass passivated rectifier diode from Vishay General Semiconductor, designed for general purpose rectification in power supplies, inverters, converters, and freewheeling diode applications.
This device is rated for an average rectified current of 1 A and a repetitive peak reverse voltage of 1000 V. It offers a maximum forward voltage of 1.1 V at 1 A and a low reverse leakage current of 5 µA. The diode can handle a peak forward surge current of 30 A (8.3 ms sinusoidal) and has a non-repetitive peak reverse avalanche energy rating of 5 mJ. The reverse recovery time is 1.8 µs, classifying it as a standard recovery device.

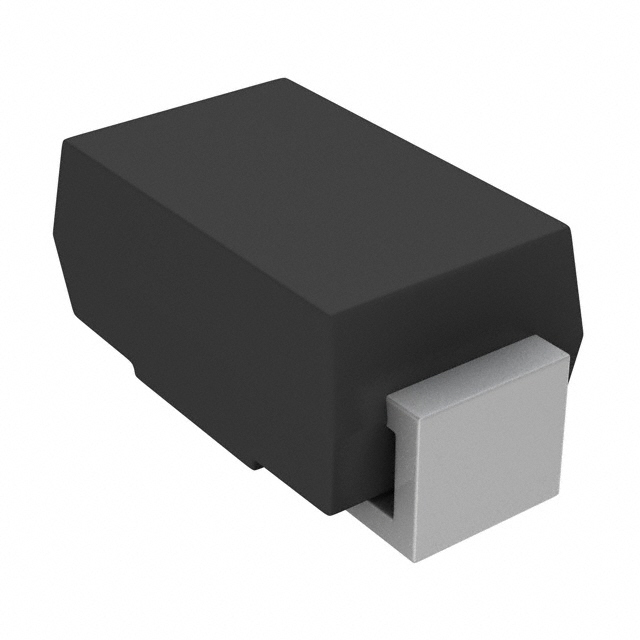

The S1M-E3/61T is housed in an SMA (DO-214AC) surface-mount package with matte tin plated terminals and a color band cathode polarity indicator. The molding compound meets UL 94 V-0 flammability rating. The part is RoHS-compliant (commercial grade) and meets MSL level 1 per J-STD-020.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.33 | $0.33 |
| 10+ | $0.20 | $0.20 |
| 100+ | $0.13 | $0.13 |
| 500+ | $0.09 | $0.09 |
| 1,000+ | $0.06 | $0.06 |
| 1,800+ | $0.05 | $0.05 |
| 3,600+ | $0.05 | $0.05 |
| 9,000+ | $0.04 | $0.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The average rectified current is 1 A.
The maximum repetitive peak reverse voltage is 1000 V.
The maximum forward voltage is 1.1 V at 1 A.
The maximum reverse recovery time is 1.8 µs.
The device is available in an SMA (DO-214AC) surface-mount package.
The maximum operating junction temperature is 175 °C.
The base P/N-E3 variant is RoHS-compliant commercial grade.
