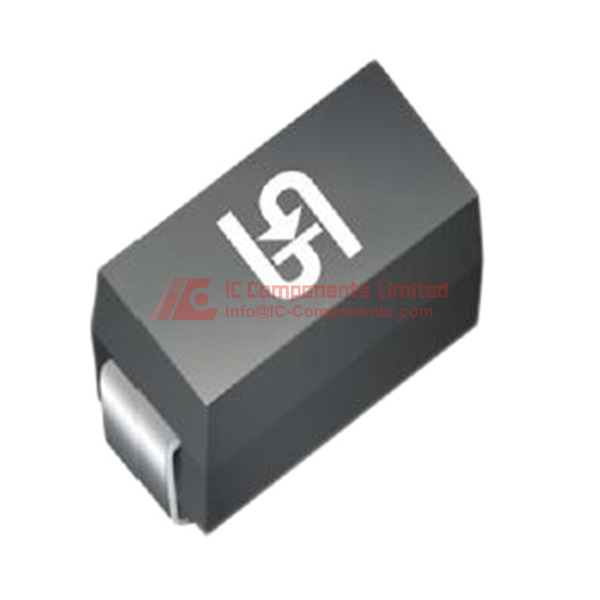

S1JHM2G The Taiwan Semiconductor S1JHM2G is a general purpose diode designed for 600V reverse voltage and 1A average rectified current. It features a surface mount DO-214AC (SMA) package.
Mfr Part #:

S1JHM2G

Available from 1 distributors
Mfr Name: Taiwan Semiconductor
Taiwan Semiconductor
The Taiwan Semiconductor S1JHM2G is a general purpose diode designed for 600V reverse voltage and 1A average rectified current. It features a surface mount DO-214AC (SMA) package.
✓ Total Stock: 2,154 pcs
$ Price Range: $0.47

S1JHM2G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
2,154 pcs
On Request
2154 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

S1JHM2G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
Halogen Free
Lead Style
Mounting Type
Reverse Recovery Time
Speed
Supplier Device Package
Tape & Reel
View Similar Products (0)

S1JHM2G Description

Short technical summary and product information.

The S1JHM2G from Taiwan Semiconductor is a general purpose diode with a maximum reverse voltage rating of 600V and an average rectified current of 1A. It exhibits a typical forward voltage of 1.1V at 1A and a reverse leakage current of 1µA at 600V. The diode has a capacitance of 12pF at 4V and 1MHz, and a reverse recovery time of 1.5µs.



This component is designed for standard recovery speeds, with a recovery time greater than 500ns for currents over 200mA. It operates within a junction temperature range of -55°C to 175°C. The S1JHM2G is housed in a DO-214AC (SMA) surface mount package, making it suitable for various electronic assemblies where space is a consideration.



Compliance information indicates it is lead-free and RoHS3 compliant. The Moisture Sensitivity Level (MSL) is 1, and it is REACH unaffected. The series is noted as Automotive, AEC-Q101.

S1JHM2G Quick Information

Product Type: Diode
Series: AEC-Q101
Canonical Name: Taiwan Semiconductor S1JHM2G General Purpose Diode
Subcategory: Rectifier

S1JHM2G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead free

S1JHM2G Estimated Pricing

Qty Low High
1+ $0.47 $0.47

Estimated market price range - modelled values for guidance only, not live distributor offers.

S1JHM2G Features

  • 600V maximum reverse voltage.
  • 1A average rectified current.
  • 1.1V maximum forward voltage.
  • 1.5µs typical reverse recovery time.
  • DO-214AC (SMA) surface mount package.

S1JHM2G Applications

  • Suitable for general purpose rectification.
  • Used in automotive applications (AEC-Q101).
  • Ideal for space-constrained designs.
  • Standard recovery applications.

S1JHM2G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum reverse voltage of the S1JHM2G?

The maximum reverse voltage is 600V.

What is the average forward current rating?

The average forward rectified current is 1A.

What is the forward voltage drop at 1A?

The forward voltage is 1.1V maximum at 1A.

What is the reverse recovery time?

The typical reverse recovery time is 1.5µs.

What is the junction capacitance?

The typical capacitance is 12pF at 4V and 1MHz.

What is the operating temperature range?

The junction operating temperature range is -55°C to 175°C.

What package is the S1JHM2G available in?

It is available in a surface mount DO-214AC (SMA) package.
