| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,999 pcs
|
3999 pcs | On Request | 1 | On Request | On Request | 10+ | On Request | On Request | |
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Function | |
| Mounting Type | |
| Voltage |

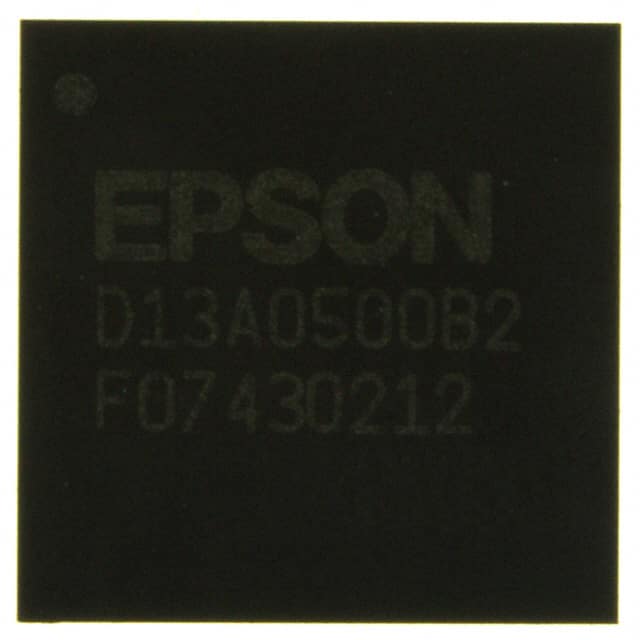

The Epson S1D13A05B00B200 is an integrated circuit designed for LCD and USB applications. It features an embedded 256KB SRAM display buffer, eliminating the need for an external timing control IC. The device includes a USB slave controller compliant with revision 1.1 and an LCD graphics controller.
Key features include a low-latency CPU interface, support for multiple CPU types, and programmable resolutions. The S1D13A05B00B200 also offers hardware acceleration for screen drawing functions, SwivelView for 90°, 180°, and 270° hardware rotation, and Picture-in-Picture Plus capability.
This component operates within a voltage range of 2V to 3.3V and is housed in a 121-PFBGA package suitable for surface mounting. Its high integration provides a low-cost, low-power solution for embedded markets requiring USB client support, such as mobile communication devices and palm-size PCs.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.68 | $9.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 2V to 3.3V.
The S1D13A05B00B200 is available in a 121-BGA package.
The component has an embedded 256KB SRAM display buffer.
Yes, it supports SwivelView hardware rotation at 90°, 180°, and 270°.
Yes, the built-in USB controller provides revision 1.1 compliance.
