| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,957 pcs
|
3957 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,215 pcs
|
1215 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Attachment Method | |
| Automotive Grade | |
| Height | |
| Industrial Grade | |
| Lead Spacing | |
| Length | |
| Material | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Plating | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Width |

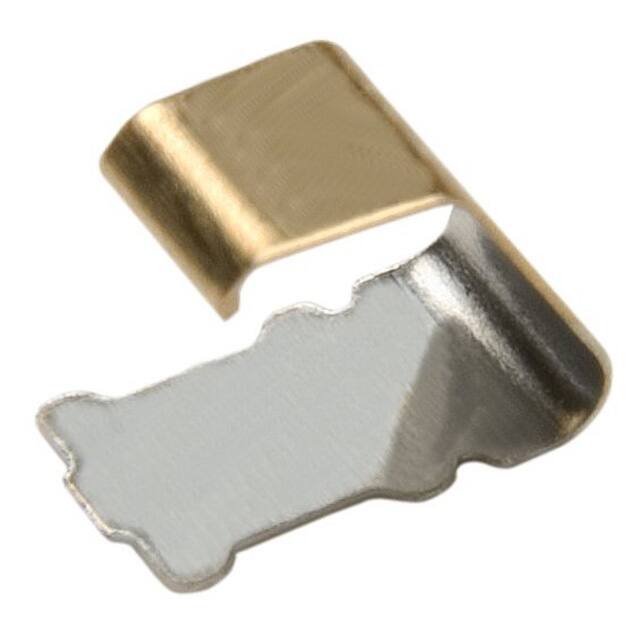

The Harwin Inc. S1791-42R is a surface mount spring contact designed for shielding and grounding applications on PCBs. Its C-style contact shape is suitable for both wiping and sliding actions, ideal for automated placement using standard equipment.
This component has a height of 4.00mm and a width of 2.50mm. It is constructed from stainless steel with a gold finish on the contact area and termination. The attachment method is solder, and it is supplied on tape and reel for efficient automated assembly.
Operating within a temperature range of -55°C to 125°C, the S1791-42R is designed for reliability in various environmental conditions. Its RoHS3 compliant status and MSL 1 rating indicate suitability for a wide range of electronic manufacturing processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The free height of the S1791-42R spring contact is 4.00mm.
The S1791-42R spring contact features a gold finish on the contact area and termination.
The S1791-42R spring contact can operate between -55°C and 125°C.
The S1791-42R is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the S1791-42R is 1.
