| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
14,954 pcs
$0.48
|
14954 pcs |
$0.48
|
1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Attachment Method | |
| Contact Finish | |
| Height | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Plating | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Finish | |
| Type | |
| Width |

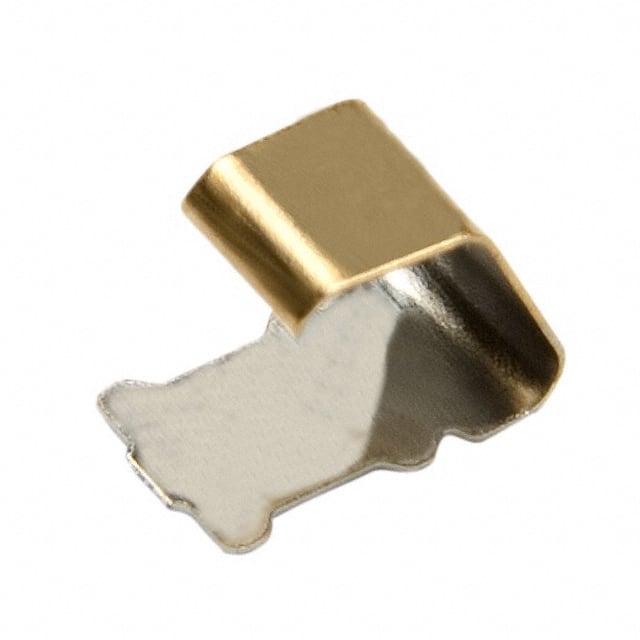

The Harwin Inc. S1761-42R is a surface mount spring contact designed for shielding and grounding applications on PCBs. This component features a C-style contact with no positive stop, suitable for both wiping and sliding actions.
Key specifications include a free height of 3.5mm, a working height of 2.5mm, and a minimum height of 1.75mm. The contact area is finished with gold, while the termination area has a tin finish. The material is stainless steel, and it operates within a temperature range of -55°C to 125°C.
Designed for automated placement, the S1761-42R is packaged in tape and reel. Its surface mount design and robust construction make it ideal for use in contact with metal shields or frames in various electronic assemblies. The attachment method is solder.
This spring contact is suitable for applications requiring reliable RFI and EMI shielding. Its dimensions and plating ensure good conductivity and durability in demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The free height is 3.5mm, working height is 2.5mm, and minimum height is 1.75mm.
The contact area is plated with gold, and the termination area is plated with tin.
The operating temperature range is -55°C to 125°C.
It is packaged in Tape and Reel for automated placement.
The material is Stainless Steel.
