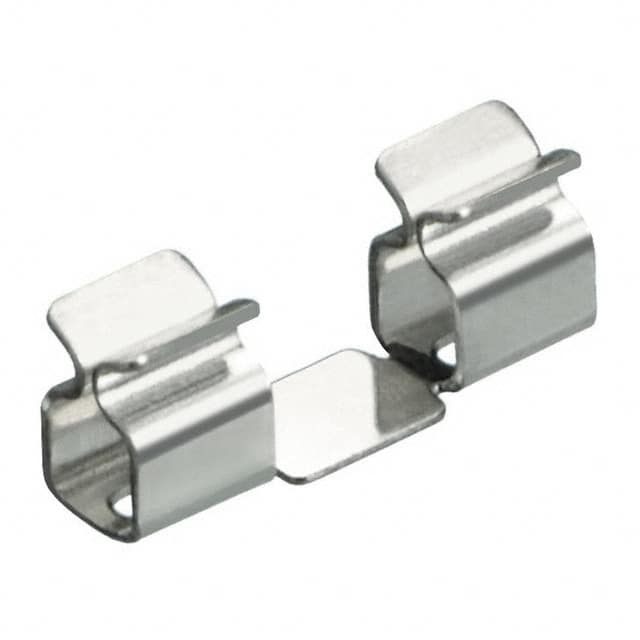

S1711-46R The Harwin Inc. S1711-46R is a Midi size SMT shield clip designed for EMI/RFI shielding applications. It features Tin plating and a surface mount attachment method.
Mfr Part #:

S1711-46R

Available from 2 distributors
Mfr Name: Harwin Inc.
Harwin Inc.
The Harwin Inc. S1711-46R is a Midi size SMT shield clip designed for EMI/RFI shielding applications. It features Tin plating and a surface mount attachment method.
✓ Total Stock: 1,965 pcs
$ Price Range: $0.99

S1711-46R Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
1,900 pcs
On Request
1900 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
65 pcs
On Request
65 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

S1711-46R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Attachment Method
Height
Length
Material
Mounting Type
Operating Temperature
Plating
Tape & Reel
Termination Style
Type
Width
View Similar Products (0)

S1711-46R Description

Short technical summary and product information.

The Harwin Inc. S1711-46R is a Midi size Surface Mount Device (SMD) shield clip designed for EMI/RFI shielding applications. This clip is suitable for shield thicknesses ranging from 0.17mm to 0.30mm.



Key specifications include a length of 8.79mm, a width of 2.28mm, and a height of 3.55mm. The clip is constructed from Stainless Steel with Tin plating on the contact area and termination. It is designed for solder attachment and operates within a temperature range of -40°C to 125°C.



This shield clip offers a fast solution for assembling RFI shields to PCBs, eliminating the need for through holes and post-reflow operations. It saves PCB real estate and facilitates easy removal of the shield can for maintenance and repair, improving assembly time and simplicity.



The S1711-46R is supplied in Tape and Reel packaging for automated placement, making it ideal for high-volume manufacturing processes. It is recommended for use with the S01-30200 component.

S1711-46R Quick Information

Product Type: Shield Clip
Series: Midi
Canonical Name: Harwin Inc. S1711-46R Midi SMT Shield Clip
Subcategory: EMC/RFI Shield Clip

S1711-46R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

S1711-46R Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

S1711-46R Features

  • Midi size SMT shield clip for EMI/RFI.
  • Suitable for 0.17-0.30mm shield thickness.
  • Stainless Steel with Tin plating.
  • Surface mount with solder attachment.
  • Operates from -40°C to 125°C.

S1711-46R Applications

  • Ideal for EMI/RFI shield assembly.
  • Facilitates easy shield can removal.
  • Saves PCB real estate.
  • Supports automated placement.

S1711-46R FAQs

5 frequently asked questions generated from this part’s specifications.
What is the shield thickness compatibility for the S1711-46R?

The S1711-46R shield clip is designed for shield thicknesses ranging from 0.17mm to 0.30mm.

What are the dimensions of the S1711-46R shield clip?

The S1711-46R shield clip has a length of 8.79mm, a width of 2.28mm, and a height of 3.55mm.

What is the operating temperature range for the S1711-46R?

The S1711-46R shield clip can operate in temperatures ranging from -40°C to 125°C.

What material and plating does the S1711-46R use?

The S1711-46R shield clip is made of Stainless Steel with Tin plating on the contact area and termination.

How is the S1711-46R shield clip attached to the PCB?

The S1711-46R shield clip is attached via solder and is designed for surface mounting.
