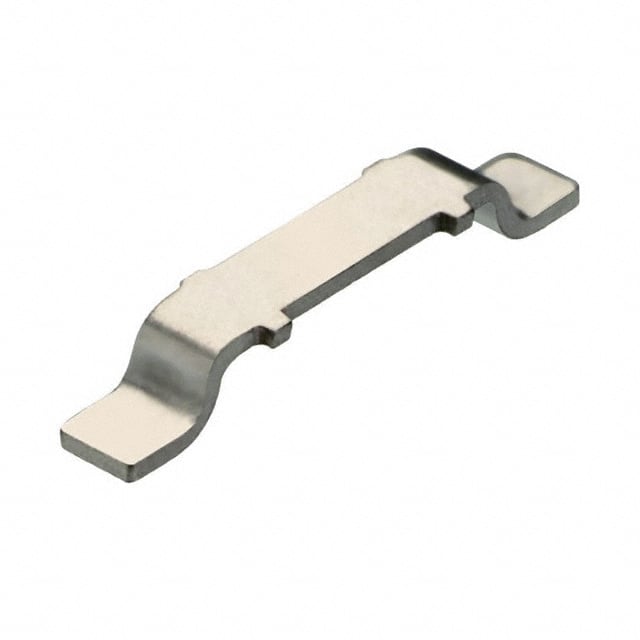

S1621-46R Harwin S1621-46R is a surface mount fixed jumper link, 12.3mm long, rated for 10A, with tin-plated copper alloy contacts.
Mfr Part #:

S1621-46R

Available from 2 distributors
Mfr Name: Harwin Inc.
Harwin Inc.
Harwin S1621-46R is a surface mount fixed jumper link, 12.3mm long, rated for 10A, with tin-plated copper alloy contacts.
✓ Total Stock: 9,561 pcs
$ Price Range: $0.11 - $0.23

S1621-46R Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Seba Components ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
4,561 pcs
On Request
4561 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

S1621-46R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Contact Finish
Contact Finish Thickness
Current Rating (Amps)
Gender
Halogen Free
Height
Industrial Grade
Lead Style
Length
Material
Medical Grade
Military Grade
Mounting Type
Number of Positions or Pins (Grid)
Pitch
SVHC Present
Tape & Reel
Type
View Similar Products (0)

S1621-46R Description

Short technical summary and product information.

The Harwin S1621-46R is a surface mount fixed jumper link designed to bridge across PCB tracks where through-hole solutions are not practical. It measures 12.3mm in length with a low profile height of 1.80mm and 1.3mm clearance underneath.



This non-gendered, non-insulated jumper is rated for 10A and features tin-plated copper alloy contacts with a contact finish thickness of 3.00µm. The 8.10mm pitch accommodates standard PCB layouts.



Packaged in tape and reel for automated pick-and-place assembly, the S1621-46R is suitable for high-volume production. Its surface mount design eliminates the need for manual soldering, reducing assembly time.

S1621-46R Quick Information

Product Type: SMT Fixed Jumper Link
Series: S1621
Canonical Name: Harwin S1621-46R SMT Fixed Jumper Link, 12.3mm Length, 10A, Tin Finish
Subcategory: SMT Jumper Links

S1621-46R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

S1621-46R Estimated Pricing

Qty Low High
1+ $0.23 $0.23
10+ $0.17 $0.17
100+ $0.15 $0.15
500+ $0.14 $0.14
1,000+ $0.12 $0.12
5,000+ $0.12 $0.12
10,000+ $0.11 $0.11
25,000+ $0.11 $0.11
50,000+ $0.11 $0.11

Estimated market price range - modelled values for guidance only, not live distributor offers.

S1621-46R Features

  • Rated for 10A continuous current.
  • Surface mount fixed jumper link.
  • 12.3mm length with 1.80mm height.
  • Tin-plated copper alloy contacts.
  • Tape and reel packaging for automated placement.

S1621-46R Applications

  • Bridge PCB traces in compact designs.
  • Replace through-hole jumpers in SMT assemblies.
  • Use in automated pick-and-place production lines.
  • Ideal for low-profile board-level connections.

S1621-46R FAQs

5 frequently asked questions generated from this part’s specifications.
What is the current rating of the S1621-46R?

The S1621-46R is rated for 10A.

What is the pitch of this jumper link?

The pitch is 8.10mm (0.319 inches).

What is the mounting type for the S1621-46R?

It is a surface mount (SMT) component.

What is the length and height of the S1621-46R?

The length is 12.3mm and the height is 1.80mm.

What material are the contacts made of?

The contacts are made of copper alloy with a tin finish.
