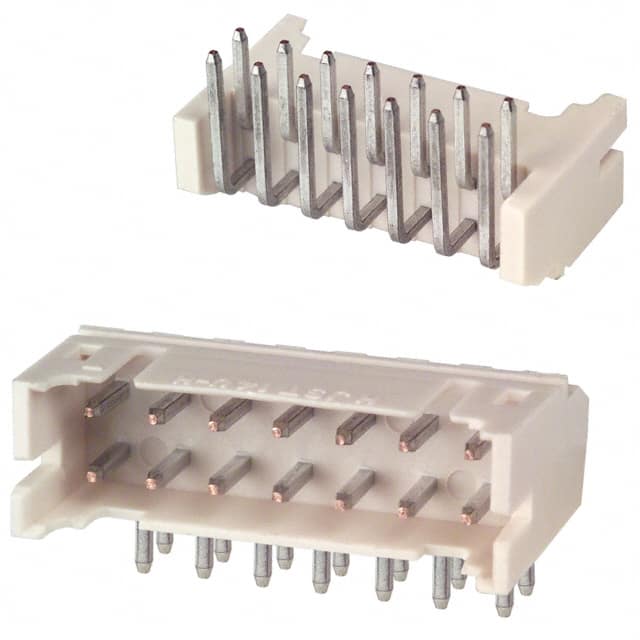

S14B-PHDSS(LF)(SN) JST PHD series 14 position 2.00mm pitch right angle shrouded header with male pins. Through hole mounting, tin plated contacts, rated 3A at 250V.
Mfr Part #:

S14B-PHDSS(LF)(SN)

Available from 2 distributors
Mfr Name: Jst Manufacturing
Jst Manufacturing
JST PHD series 14 position 2.00mm pitch right angle shrouded header with male pins. Through hole mounting, tin plated contacts, rated 3A at 250V.
✓ Total Stock: 4 pcs
$ Price Range: $0.31 - $0.60

S14B-PHDSS(LF)(SN) Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Spartce Electronics. ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
Trace Tec ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

S14B-PHDSS(LF)(SN) Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Termination
Voltage Rating
View Similar Products (0)

S14B-PHDSS(LF)(SN) Description

Short technical summary and product information.

The JST S14B-PHDSS(LF)(SN) is a 14-position, 2-row, 2.00mm pitch right angle shrouded header from the PHD series. It features male pin contacts with a tin finish and a natural polyamide (nylon) glass-filled insulator. The connector is designed for board-to-cable/wire applications and uses a detent lock fastening system for secure mating.



Rated at 3A current and 250V voltage, this header operates over a temperature range of -25°C to 85°C. The insulation material is rated UL94 V-0 for flammability. The shrouded 4-wall design provides protection for the mating pins and ensures proper alignment with the receptacle.



This through-hole, right-angle mounting style is suitable for PCB layouts where a low-profile, space-saving connection is needed. The square contact pins have a mating length of 2.90mm. The part is RoHS3 compliant and has an MSL of 1 (unlimited).

S14B-PHDSS(LF)(SN) Quick Information

Product Type: Header
Series: PHD
Canonical Name: JST PHD Series 14 Position 2.00mm Pitch Right Angle Shrouded Header, Male Pins, Through Hole, Tin
Subcategory: Shrouded Header

S14B-PHDSS(LF)(SN) Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

S14B-PHDSS(LF)(SN) Estimated Pricing

Qty Low High
1+ $0.60 $0.60
10+ $0.51 $0.51
100+ $0.50 $0.50
250+ $0.38 $0.38
1,000+ $0.37 $0.37
2,500+ $0.35 $0.35
5,000+ $0.33 $0.33
10,000+ $0.31 $0.31

Estimated market price range - modelled values for guidance only, not live distributor offers.

S14B-PHDSS(LF)(SN) Features

  • 14 position 2.00mm pitch right angle header.
  • Shrouded 4-wall design with detent lock.
  • Tin plated copper alloy male pins.
  • Rated 3A current and 250V voltage.
  • UL94 V-0 glass-filled nylon insulator.

S14B-PHDSS(LF)(SN) Applications

  • Board-to-cable/wire interconnect applications.
  • Consumer electronics and home appliances.
  • Industrial control and automation equipment.
  • Automotive interior and infotainment systems.

S14B-PHDSS(LF)(SN) FAQs

5 frequently asked questions generated from this part’s specifications.
What is the pitch of the S14B-PHDSS(LF)(SN)?

The pitch is 2.00mm (0.079 inches).

How many positions does this header have?

It has 14 positions in 2 rows, with all positions loaded.

What is the current and voltage rating?

The current rating is 3A and the voltage rating is 250V.

What is the mounting type?

Through hole, right angle.

What is the operating temperature range?

-25°C to 85°C.
