| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,795 pcs
|
1795 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
610 pcs
|
610 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Attachment Method | |
| Height | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Plating | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Width |

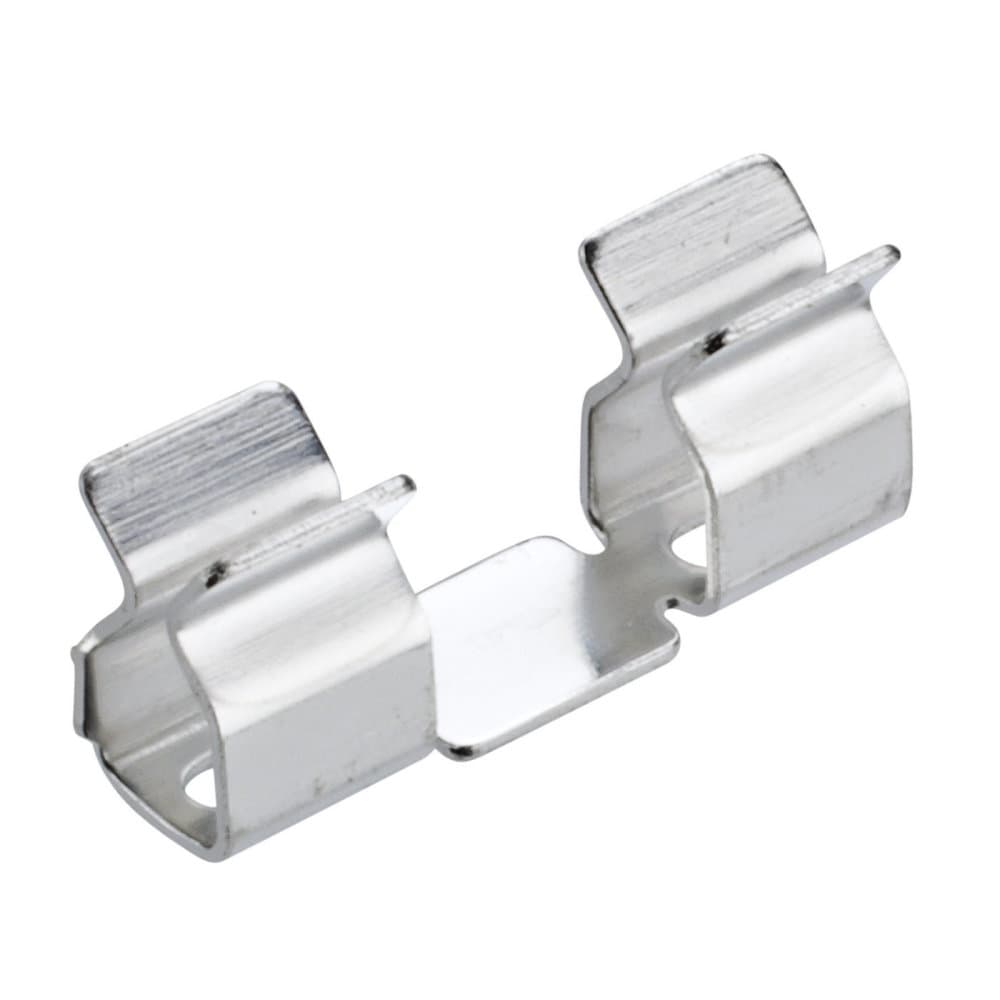

The Harwin Inc. S1411-46R is a Maxi size Surface Mount Technology (SMT) shield clip, specifically designed for EMI/RFI shielding applications. This component features a tin finish on its contact area and termination, ensuring reliable conductivity. It is engineered for a shield thickness range of 0.70mm to 1.00mm, making it versatile for various enclosure designs.
With dimensions of 8.79mm in length and 3.65mm in height, the S1411-46R is a compact solution that facilitates easy assembly and removal of shielding cans for maintenance or repair. The SMT design eliminates the need for through-holes, saving valuable PCB real estate and simplifying the manufacturing process. The clip is supplied in tape and reel packaging, enabling automated placement and integration into high-volume production lines.
Operating within a temperature range of -25°C to 150°C, this shield clip is constructed from durable stainless steel. Its solder attachment method ensures a secure connection to the PCB. The S1411-46R is a practical choice for engineers seeking efficient and space-saving solutions for electromagnetic compatibility in their designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -25°C to 150°C.
The S1411-46R is designed for shield thicknesses ranging from 0.70mm to 1.00mm.
The S1411-46R shield clip has a length of 8.79mm and a height of 3.65mm.
The S1411-46R shield clip is made of stainless steel.
The S1411-46R shield clip is attached via solder.
