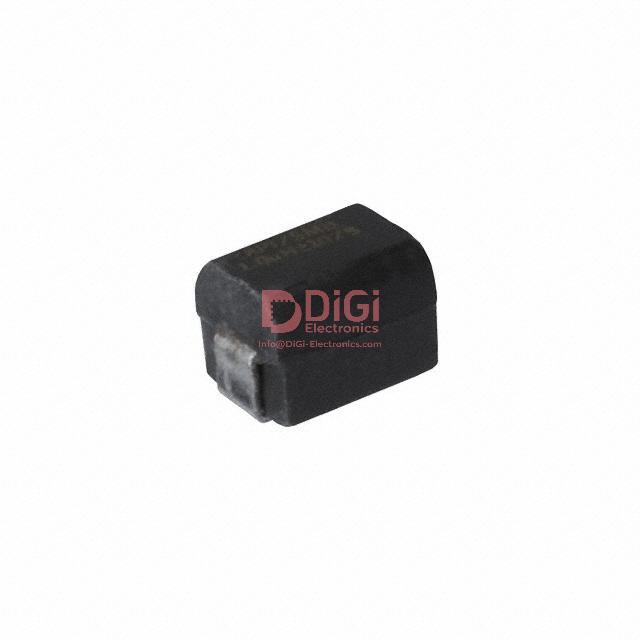

S1210R-331K The API Delevan Inc. S1210R-331K is a shielded fixed inductor with 330nH inductance and a 740mA current rating. It features a surface mountable 1210 package.
Mfr Part #:

S1210R-331K

Available from 1 distributors
Mfr Name: API Delevan Inc.
API Delevan Inc.
The API Delevan Inc. S1210R-331K is a shielded fixed inductor with 330nH inductance and a 740mA current rating. It features a surface mountable 1210 package.
✓ Total Stock: 3,000 pcs
$ Price Range: $0.20

S1210R-331K Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

S1210R-331K Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Amps)
DC Resistance (DCR)
Frequency
Height
Inductance
Length
Material
Mounting Type
Operating Temperature
Q @ Freq
Shielding
Supplier Device Package
Tape & Reel
Tolerance
Width
View Similar Products (0)

S1210R-331K Description

Short technical summary and product information.

The API Delevan Inc. S1210R-331K is a shielded fixed inductor designed for surface mounting. It offers an inductance value of 330 nH with a tolerance of ±10%.



This inductor has a current rating of 740 mA and a maximum DC resistance of 350 mOhm. It operates within a temperature range of -55°C to 125°C. The component is constructed with an iron core and comes in a 1210 (3225 Metric) package.



Key electrical characteristics include a Q factor of 40 at 25MHz and a frequency of 255MHz. The dimensions of the inductor are 3.25mm in length, 2.42mm in width, and 2.57mm in height.

S1210R-331K Quick Information

Product Type: Fixed Inductor
Series: S1210R
Canonical Name: API Delevan Inc. S1210R-331K Fixed Inductor
Subcategory: Fixed Inductor

S1210R-331K Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

S1210R-331K Estimated Pricing

Qty Low High
1+ $0.20 $0.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

S1210R-331K Features

  • Shielded iron core wirewound construction.
  • High self-resonant frequency of 255 MHz.
  • Rated for 740 mA DC current.
  • Wide operating temperature range -55°C to 125°C.
  • Surface mount 1210 package.

S1210R-331K Applications

  • Ideal for RF signal filtering circuits.
  • Used in impedance matching networks.
  • Suitable for DC-DC converter filtering.
  • Applicable in wireless communication modules.

S1210R-331K FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance value of the S1210R-331K?

330 nH.

What is the current rating of the S1210R-331K?

740 mA.

What is the DC resistance of the S1210R-331K?

350 mOhm maximum.

What is the self-resonant frequency of the S1210R-331K?

255 MHz.

What is the package size of the S1210R-331K?

1210 (3225 Metric) surface mount package.

Is the S1210R-331K shielded?

Yes, this inductor features magnetic shielding.

What is the operating temperature range of the S1210R-331K?

-55°C to 125°C.
