| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Shielding | |
| Supplier Device Package | |
| Tape & Reel | |
| Tolerance | |
| Width |

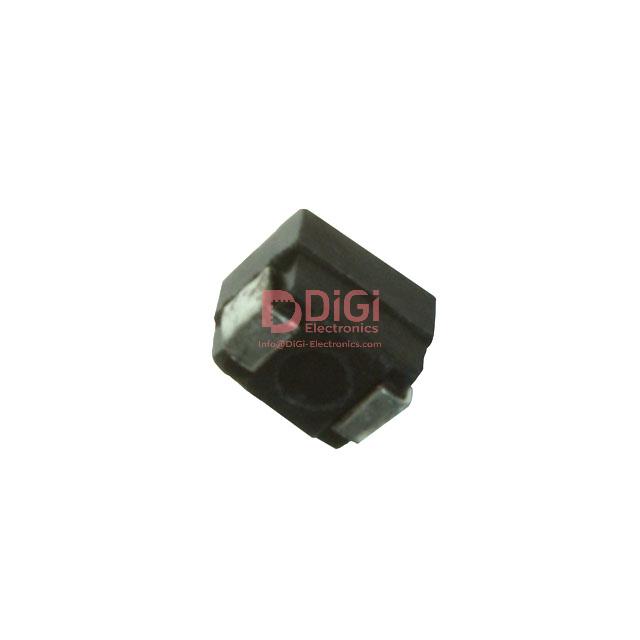

The API Delevan Inc. S1210-222K is a shielded fixed inductor designed for electronic circuits requiring precise inductance values. It offers an inductance of 2.2 µH with a tolerance of ±10%, ensuring reliable performance in demanding applications.
This inductor is rated for a current of 470 mA and has a DC resistance (DCR) of 730mOhm maximum. It operates within a temperature range of -55°C to 125°C. The component is constructed with a ferrite core and features a shielded design, which helps to minimize electromagnetic interference.
The S1210-222K is housed in a 1210 (3225 Metric) package, measuring 3.25mm in length, 2.42mm in width, and 2.57mm in height. It is designed for surface mounting, making it suitable for automated assembly processes. The component is supplied on tape and reel for efficient handling and placement.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance of the S1210-222K is 2.2 µH.
The current rating for the S1210-222K is 470 mA.
The DC resistance (DCR) of the S1210-222K is a maximum of 730mOhm.
The S1210-222K comes in a 1210 (3225 Metric) package.
The operating temperature range for the S1210-222K is -55°C to 125°C.
