S11B-EH JST S11B-EH is an 11-position single row header with 2.5mm pitch, male pins, right angle through hole mounting. Suitable for wire-to-board applications.
Mfr Part #:

S11B-EH

Available from 2 distributors
Mfr Name: Jst Manufacturing
Jst Manufacturing
JST S11B-EH is an 11-position single row header with 2.5mm pitch, male pins, right angle through hole mounting. Suitable for wire-to-board applications.
✓ Total Stock: 7,500 pcs
$ Price Range: $0.24 - $0.46

S11B-EH Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
7,250 pcs
On Request
7250 pcs On Request 1 On Request On Request On Request On Request On Request
Seba Components ✓
Non-Authorised Inventory information
250 pcs
On Request
250 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

S11B-EH Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Insulation Resistance
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
SVHC Present
Shrouding
Style
Termination
Termination Style
Voltage Rating
Withstanding Voltage
View Similar Products (0)

S11B-EH Description

Short technical summary and product information.

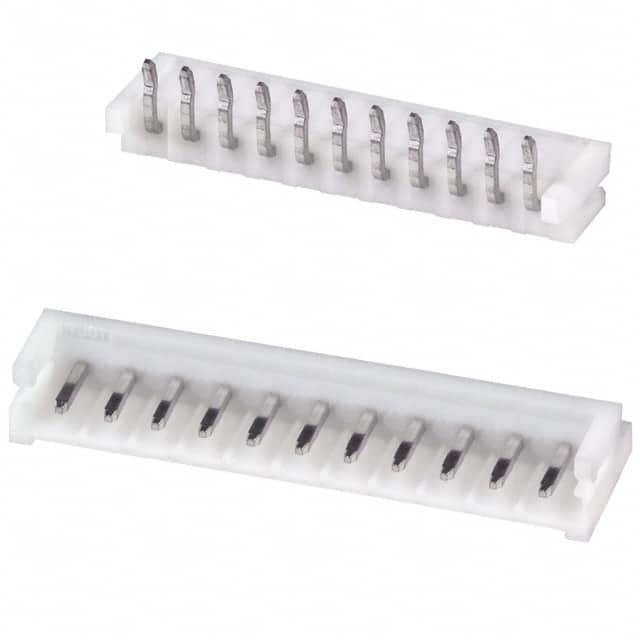

The JST S11B-EH is a 2.5mm pitch wire-to-board connector from the EH series. It features 11 male pin contacts in a single row, with a shrouded housing (3-wall) and latch lock fastening for secure mating. The header is mounted via through hole right angle configuration, with press-fit and solder termination options.



Electrical ratings include 3A current (AWG22) and 250V voltage. Contact resistance is 10 mΩ initial, and insulation resistance is 1000 MΩ minimum. The operating temperature range is -25°C to 85°C. The insulator is made of polyamide (PA66/Nylon 6/6) with natural color and UL94 V-0 flammability rating. Contacts are brass with tin-lead plating.



This connector is designed for high-density PCB layouts and offers a low profile (insulation height 4.20mm). It accepts wire sizes AWG #32 to #22 with insulation OD up to 1.9mm. The applicable PC board thickness is 0.8 to 1.6mm.

S11B-EH Quick Information

Product Type: Header - Male Pins
Series: EH
Canonical Name: JST EH Series S11B-EH Header, Male Pins
Subcategory: Male Pins

S11B-EH Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

S11B-EH Estimated Pricing

Qty Low High
1+ $0.46 $0.46
10+ $0.39 $0.39
250+ $0.31 $0.31
500+ $0.30 $0.30
1,000+ $0.28 $0.28
5,000+ $0.25 $0.25
10,000+ $0.24 $0.24

Estimated market price range - modelled values for guidance only, not live distributor offers.

S11B-EH Features

  • 11 positions in a single row.
  • 2.5mm pitch for compact design.
  • Right angle through hole mounting.
  • Shrouded housing with latch lock.
  • Rated 3A current and 250V voltage.

S11B-EH Applications

  • Wire-to-board connections in consumer electronics.
  • Ideal for high-density PCB layouts.
  • Used in industrial control and automation.
  • Suitable for appliance and lighting applications.

S11B-EH FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

11 positions in a single row.

What is the pitch of this connector?

2.50mm.

What is the current rating?

3A.

What is the voltage rating?

250V.

What mounting type does it use?

Through Hole, Right Angle.

What is the operating temperature range?

-25°C to 85°C.

What wire sizes are compatible?

AWG #32 to #22.
