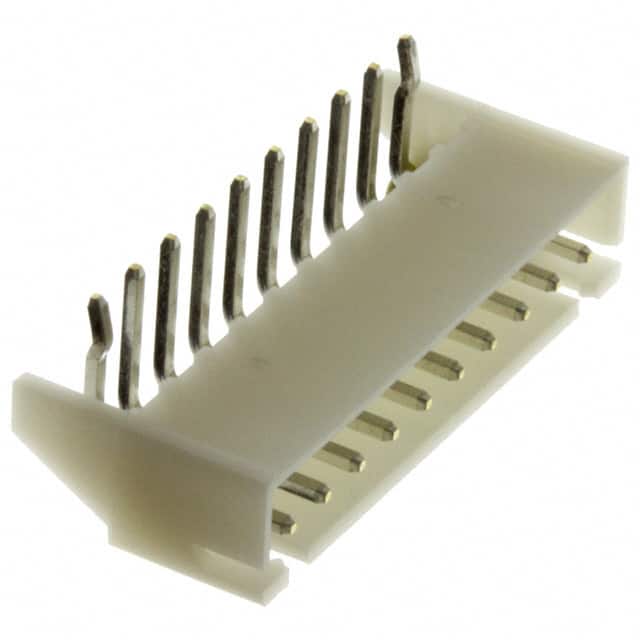

S10B-XH-A(LF)(SN) JST S10B-XH-A(LF)(SN) is a 10-position, single row, right angle header with 2.5mm pitch. It features shrouded design and detent lock for secure board-to-wire connections.
Mfr Part #:

S10B-XH-A(LF)(SN)

Available from 1 distributors
Mfr Name: Jst Manufacturing
Jst Manufacturing
JST S10B-XH-A(LF)(SN) is a 10-position, single row, right angle header with 2.5mm pitch. It features shrouded design and detent lock for secure board-to-wire connections.
✓ Total Stock: 250 pcs
$ Price Range: $0.25 - $0.48

S10B-XH-A(LF)(SN) Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
250 pcs
On Request
250 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

S10B-XH-A(LF)(SN) Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shrouding
Style
Termination
Termination Style
Voltage Rating
View Similar Products (0)

S10B-XH-A(LF)(SN) Description

Short technical summary and product information.

The JST S10B-XH-A(LF)(SN) is a 10-position, single row, right angle header designed for board-to-wire applications. It features a 2.5mm pitch and a shrouded 4-wall design with a detent lock for secure mating. The header accepts male pin contacts with square cross-section, tin-plated brass material, and is suitable for through hole mounting with press-fit or solder termination.



Electrical ratings include a current rating of 3A and voltage rating of 250V, with an operating temperature range of -25°C to 85°C. The insulation is made of polyamide (PA66/Nylon 6/6) with a natural color and UL94 V-0 flammability rating.



This header is ideal for compact wiring harnesses in consumer electronics, appliances, and industrial control systems. The right angle configuration allows for low-profile connections, and the detent lock ensures reliable retention in high-vibration environments.

S10B-XH-A(LF)(SN) Quick Information

Product Type: Header, Male Pins
Series: XH
Canonical Name: 10 Position Single Row 2.5mm Pitch Right Angle Header
Subcategory: Male Pins

S10B-XH-A(LF)(SN) Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

S10B-XH-A(LF)(SN) Estimated Pricing

Qty Low High
1+ $0.48 $0.48
10+ $0.41 $0.41
250+ $0.31 $0.31
1,000+ $0.30 $0.30
2,500+ $0.29 $0.29
5,000+ $0.26 $0.26
10,000+ $0.25 $0.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

S10B-XH-A(LF)(SN) Features

  • 10 positions in single row configuration.
  • 2.5mm pitch for compact designs.
  • Right angle through hole mounting.
  • Shrouded header with detent lock.
  • Rated for 3A current and 250V.

S10B-XH-A(LF)(SN) Applications

  • Used in board-to-wire connections.
  • Ideal for consumer electronics wire harnesses.
  • Suitable for appliance control boards.
  • Common in industrial automation interfaces.

S10B-XH-A(LF)(SN) FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the S10B-XH-A(LF)(SN) have?

10 positions.

What is the pitch of the header?

2.50mm.

What is the current rating?

3A.

What is the voltage rating?

250V.

What is the mounting type?

Through hole, right angle.

What is the operating temperature range?

-25°C to 85°C.

What is the flammability rating?

UL94 V-0.
