| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
233 pcs
|
233 pcs | On Request | 1 | On Request | On Request | 16+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Attachment Method | |
| Finish | |
| Height | |
| Length | |
| Material | |
| Operating Temperature | |
| Plating | |
| Type | |
| Width |

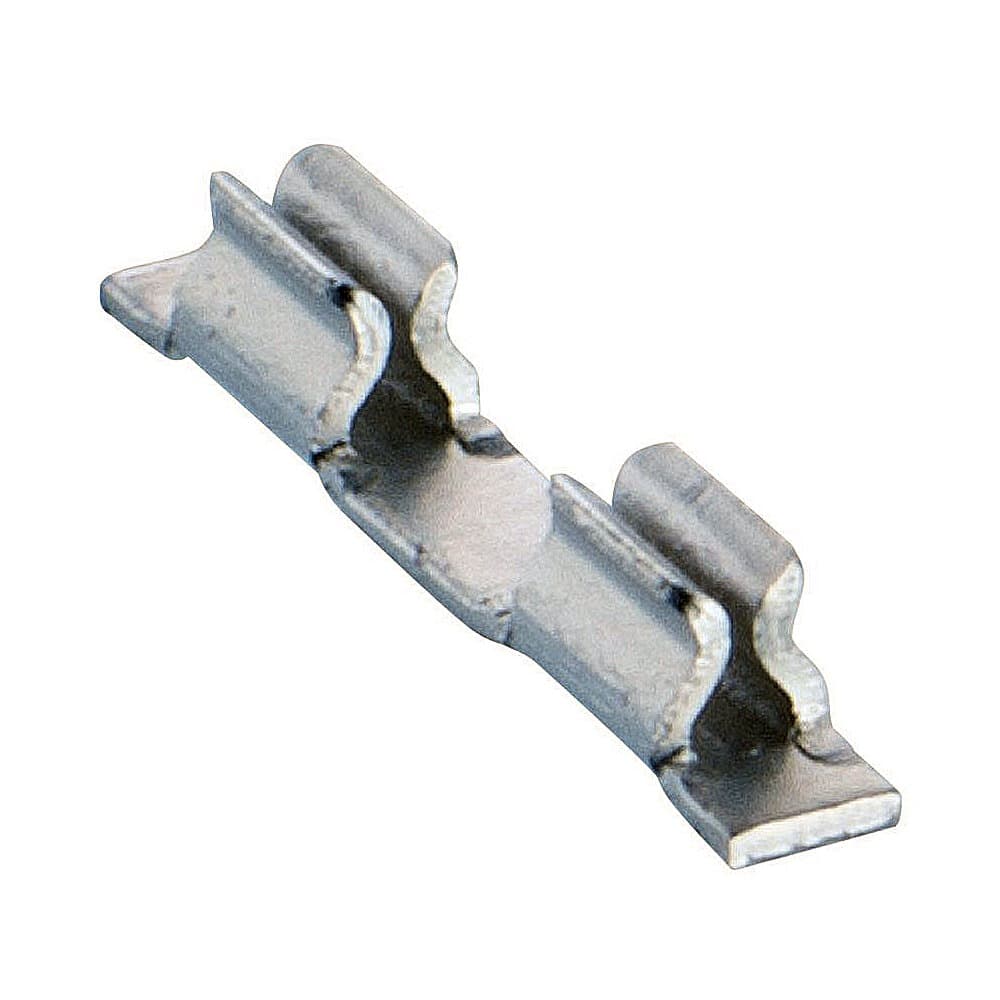

The Harwin Inc. S1001-46R is a micro surface mount shield clip designed for RFI and EMI shielding applications. It is constructed from stainless steel with a tin finish on the contact area and termination.
This shield clip has a height of 0.90mm and a width of 0.60mm, with a length of 4.50mm. It is suitable for shield cans with a thickness ranging from 0.15mm to 0.20mm. The operating temperature range for this component is -25°C to 150°C.
The S1001-46R is designed for solder attachment and is supplied in tape and reel packaging, making it ideal for automated placement on PCBs. The standard package quantity is 20,000 units per reel.
This component is part of Harwin's range of RFI and EMI shielding solutions, providing effective shielding for electronic devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -25°C to 150°C.
The shield clip is made of Stainless Steel.
The plating is Tin.
The height is 0.90mm.
The length is 4.50mm.
The width is 0.60mm.
It is packaged in Tape and Reel.
