| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
865 pcs
|
865 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Attachment Method | |
| Height | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Plating | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Width |

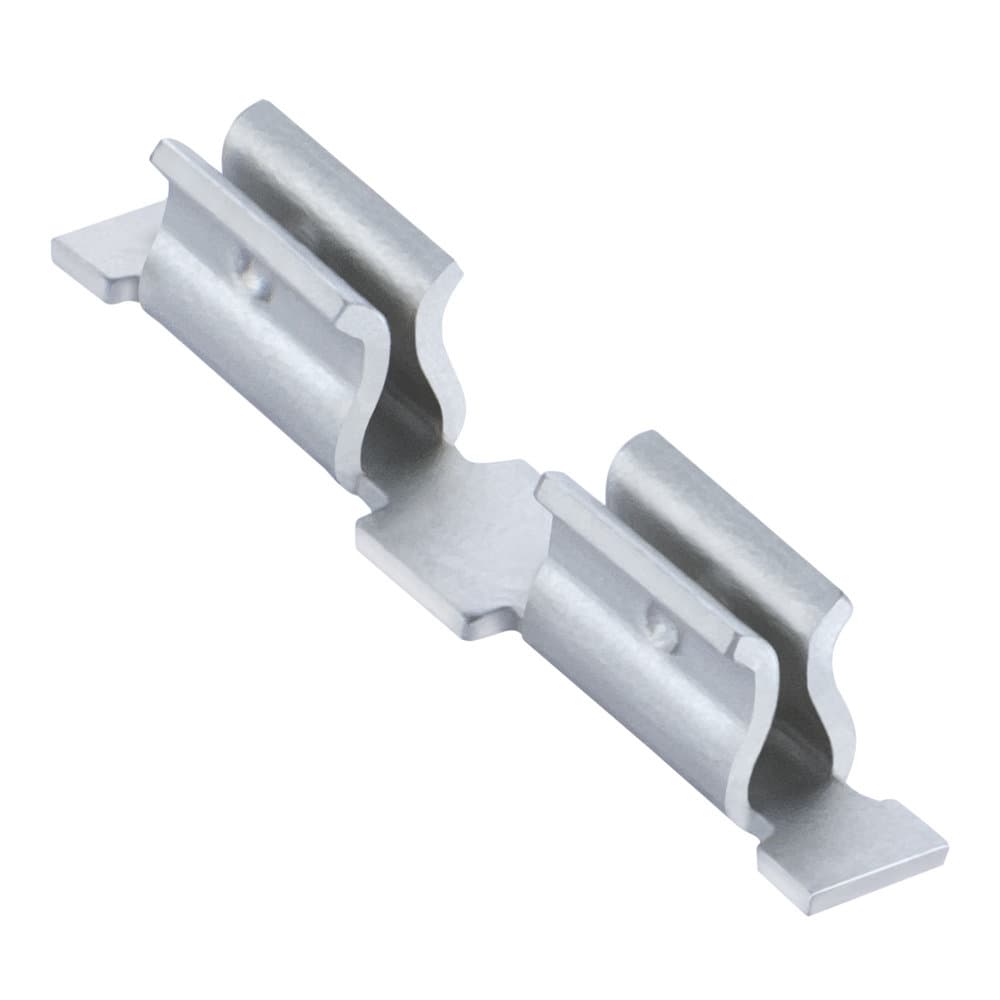

The Harwin Inc. S0961-46R is a Micro size Surface Mount Technology (SMT) shield clip. It is designed for RFI and EMI shielding applications, offering a tin finish on the contact area and termination.
This shield clip is suitable for shield thicknesses ranging from 0.15mm to 0.20mm. It has a height of 1.28mm and a length of 6.50mm. The operating temperature range for this component is -40°C to 85°C.
The S0961-46R is packaged in Tape & Reel, with 900 units on a Ø330mm reel, making it suitable for automated placement processes. It is recommended for use with S02-201 shield cans.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The S0961-46R supports shield thicknesses from 0.15mm to 0.20mm.
The maximum insertion force for the S0961-46R is 24.5N.
The minimum withdrawal force for the S0961-46R is 0.98N.
The S0961-46R has a height of 1.28mm, a length of 6.50mm, and a width of 1.00mm.
The S0961-46R operates within a temperature range of -40°C to 85°C.
The S0961-46R is packaged in Tape & Reel, with 900 units on a Ø330mm reel.
