| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
147 pcs
|
147 pcs | On Request | 1 | On Request | On Request | 15+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

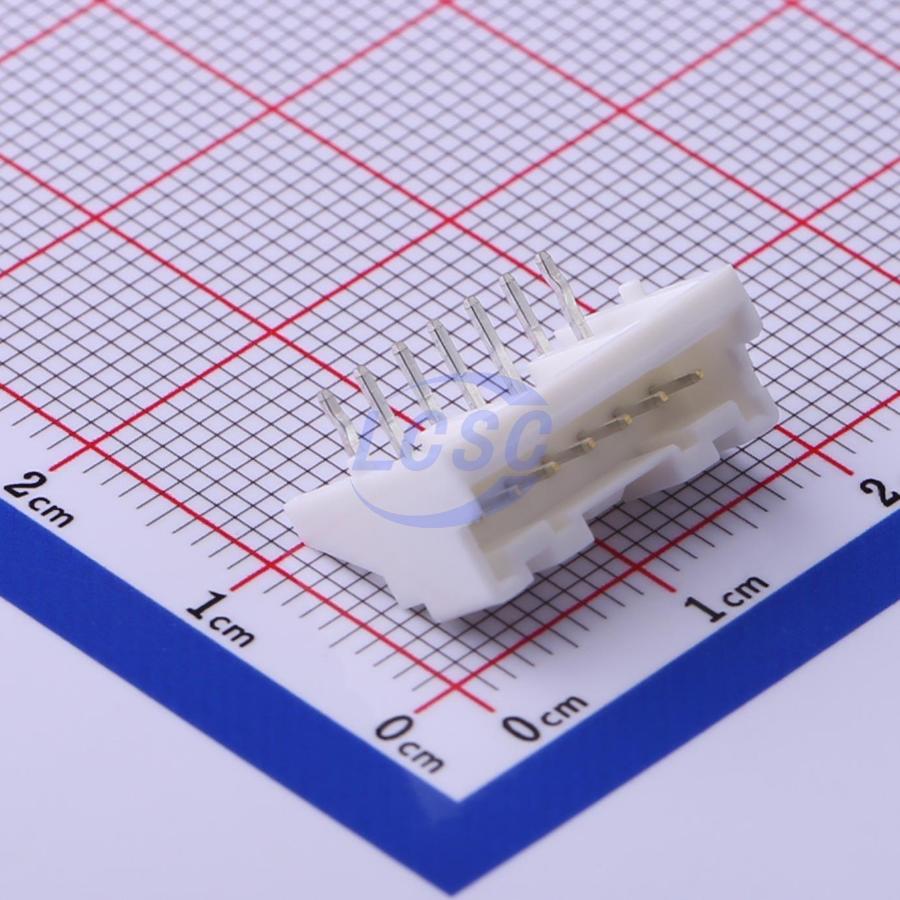

The JST S07B-PASK-2 is a male pin header designed for wire-to-board applications. It offers 7 positions in a single row with a 2.00mm pitch, suitable for compact designs.
This header has a right-angle, through-hole mounting type and a kinked pin termination style for secure soldering. It is rated for a current of 3A and a voltage of 250V, operating within a temperature range of -25°C to 85°C. The insulation material is PBT with glass filling, and it carries a UL94 V-0 flammability rating.
Key features include a secure locking device, board guide for easy insertion, and a shrouded design with 4 walls for protection. The contact material is copper alloy with a tin-lead finish. The insulation height is 6.50mm.
This connector is part of the PA Family series and is RoHS3 Compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
7 positions.
2.00mm.
3A.
250V.
Through hole, right angle.
-25°C to 85°C.
Yes, it has a locking ramp.
