| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
240 pcs
|
240 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

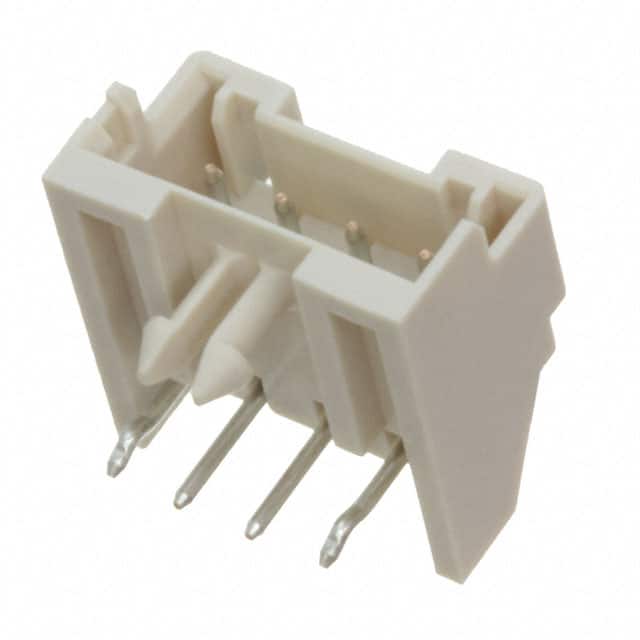

The S04B-XASK-1(LF)(SN) is a 4 position single row header from JST Manufacturing, featuring a 2.50mm pitch. It is designed for board-to-cable/wire connections with a right angle through hole mounting style. The header is fully shrouded with a 4-wall design and includes a locking ramp for secure mating.
The contacts are male pins made of copper alloy with a tin finish, rated for 3A current and 250V voltage. The insulation is natural colored polyamide (PA66) with glass filling, rated UL94 V-0 for flammability. Operating temperature range is -25°C to 85°C.
Termination options include press-fit and solder, and the header features a board lock for additional retention. The contact length is 3.20mm with a circular shape. All positions are loaded.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.58 | $0.58 |
| 10+ | $0.41 | $0.41 |
| 100+ | $0.33 | $0.33 |
| 200+ | $0.31 | $0.31 |
| 1,000+ | $0.29 | $0.29 |
| 2,600+ | $0.27 | $0.27 |
| 5,000+ | $0.26 | $0.26 |
| 10,000+ | $0.25 | $0.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
2.50mm (0.098 inches).
3A.
250V.
Through Hole, Right Angle.
-25°C to 85°C.
Polyamide (PA66) with UL94 V-0 rating.
