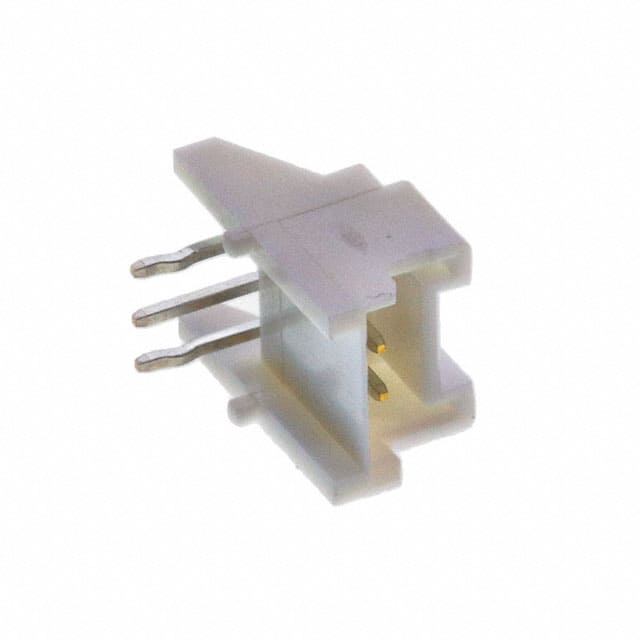

S03B-PASK-2(LF)(SN) JST Manufacturing S03B-PASK-2(LF)(SN) is a 3-position, single row, 2.00mm pitch shrouded header with right angle through-hole mounting and kinked pin solder termination.
Mfr Part #:

S03B-PASK-2(LF)(SN)

Available from 1 distributors
Mfr Name: Jst Manufacturing
Jst Manufacturing
JST Manufacturing S03B-PASK-2(LF)(SN) is a 3-position, single row, 2.00mm pitch shrouded header with right angle through-hole mounting and kinked pin solder termination.
✓ Total Stock: 503 pcs
$ Price Range: $0.19 - $0.36

S03B-PASK-2(LF)(SN) Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
503 pcs
On Request
503 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

S03B-PASK-2(LF)(SN) Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Insulation Resistance
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shrouding
Style
Termination
Termination Style
Voltage Rating
Withstanding Voltage
View Similar Products (0)

S03B-PASK-2(LF)(SN) Description

Short technical summary and product information.

The S03B-PASK-2(LF)(SN) is a 3-position male pin header from JST's PA series, featuring a 2.00mm pitch and a shrouded 4-wall design with a locking ramp for secure mating. It is designed for board-to-cable/wire connections. The header is through-hole mounted with a right-angle orientation and kinked pin terminals for secure retention. The insulation is natural colored glass-filled PBT with UL94 V-0 flammability rating. Electrical ratings include 3A current and 250V voltage, with an operating temperature range of -25°C to 85°C. Contact material is copper alloy with a tin finish. The part includes a board guide feature. It is rated for AWG 22-28 wire. Compliance includes RoHS3 and REACH unaffected (unverified).

S03B-PASK-2(LF)(SN) Quick Information

Product Type: Header, Male Pins
Series: PA
Canonical Name: JST Manufacturing S03B-PASK-2(LF)(SN) - 2.00mm Pitch 3 Position Single Row Right Angle Shrouded Header
Subcategory: Shrouded Header

S03B-PASK-2(LF)(SN) Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

S03B-PASK-2(LF)(SN) Estimated Pricing

Qty Low High
1+ $0.36 $0.36
10+ $0.31 $0.31
100+ $0.26 $0.26
250+ $0.23 $0.23
1,000+ $0.22 $0.22
3,000+ $0.21 $0.21
5,000+ $0.20 $0.20
10,000+ $0.19 $0.19

Estimated market price range - modelled values for guidance only, not live distributor offers.

S03B-PASK-2(LF)(SN) Features

  • 3-position single row 2.00mm pitch header.
  • Right angle through-hole mounting with kinked pins.
  • Shrouded 4-wall design with locking ramp.
  • Rated 3A current and 250V voltage.
  • Tin plated copper alloy contacts.

S03B-PASK-2(LF)(SN) Applications

  • Ideal for board-to-wire connections in compact devices.
  • Used in consumer electronics and industrial controls.
  • Suitable for wire-to-board cable assemblies.
  • Applicable in applications requiring secure locking.

S03B-PASK-2(LF)(SN) FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

3 positions.

What is the pitch of this connector?

2.00mm.

What is the current rating?

3A.

What is the voltage rating?

250V.

What is the mounting type?

Through hole, right angle.

What is the operating temperature range?

-25°C to 85°C.

What termination style does this header use?

Kinked pin, solder.
