Mfr Part #:

S-822T

Mfr Name: Semitec

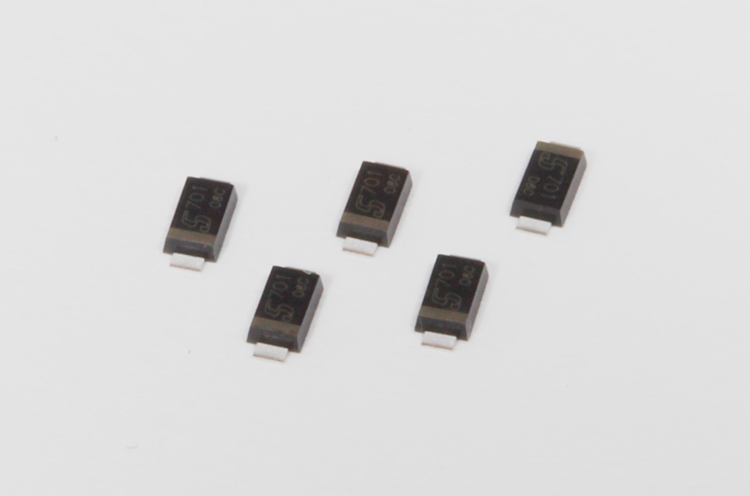

The SEMITEC S-822T is a surface mount Current Regulating Diode (CRD) designed for constant current applications. It maintains a stable current flow across a wide voltage range.

✓ Total Stock: 3 pcs

$ Price Range: $6.79

S-822T Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
ADI/AAR OEM Supply ✓ Non-Authorised Inventory information	3 pcs On Request	3 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

S-822T Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Semitec
Junction Temperature	150 ℃
Mounting Type	Surface Mount
Operating Temperature Range	-40 to 150 ℃
Rated Voltage	50 V
Temperature Coefficient	-0.25 to -0.45 % / ℃

View Similar Products (0)

S-822T Description

Short technical summary and product information.

The SEMITEC S-822T is a Current Regulating Diode (CRD) in an SMD package, designed to maintain a constant current flow despite fluctuations in voltage. This component is suitable for applications requiring stable current, such as LED brightness stabilization, constant voltage circuits for Zener diodes, and sensor power supplies.

Key electrical specifications include a typical pinch-off current of 8.2 mA at 10V, a rated voltage of 50V, and an allowable reverse current of 50 mA. The operating temperature range for the S series is -40°C to 150°C, with a junction temperature of 150°C. The device is designed for surface mounting, offering convenience in modern PCB layouts.

CRDs simplify circuit design by requiring only one component to achieve constant current regulation, unlike multi-component solutions. This makes them ideal for space-constrained applications. The S series is specifically designed as a surface mount device, fitting seamlessly with other SMD components.

S-822T Quick Information

Product Type: Current Regulating Diode

Series: S Series

Canonical Name: SEMITEC S-822T Current Regulating Diode

Subcategory: SMD

S-822T Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

S-822T Estimated Pricing

Qty	Low	High
1+	$6.79	$6.79

Estimated market price range - modelled values for guidance only, not live distributor offers.

S-822T Features

Maintains constant current despite voltage fluctuations.
8.2 mA typical pinch-off current at 10V.
50V rated voltage for pulse wave operation.
Wide -40 to 150°C operating temperature range.
Surface mount (SMD) package for easy integration.

S-822T Applications

Constant current source for LED brightness.
Stabilizes current for Zener diodes.
Provides constant current for sensors.
Used in battery charge/discharge circuits.
Suitable for stabilized power supplies.

S-822T FAQs

5 frequently asked questions generated from this part’s specifications.

What is the rated power of the S-822T?

The S-822T has a rated power of 8.2 mA.

What is the maximum rated voltage for the S-822T?

The maximum rated voltage in pulse wave conditions is 50 V.

What is the operating temperature range of the S-822T?

-40 to 150 ℃.

What package type does the S-822T use?

It uses an SMD (Surface Mount Device) package.

Is the S-822T RoHS compliant?

RoHS3 compliance status is unverified.
