S-35390A-T8T1G The ABLIC S-35390A-T8T1G is a 2-wire real-time clock IC featuring a wide operating voltage range of 1.3V to 5.5V and low current consumption. It includes an I2C interface and operates from -40°C to 85°C.
Mfr Part #:

S-35390A-T8T1G

Available from 2 distributors
Mfr Name: ABLIC Inc.
ABLIC Inc.
The ABLIC S-35390A-T8T1G is a 2-wire real-time clock IC featuring a wide operating voltage range of 1.3V to 5.5V and low current consumption. It includes an I2C interface and operates from -40°C to 85°C.
✓ Total Stock: 1,203 pcs
$ Price Range: $5.21

S-35390A-T8T1G Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
1,200 pcs
On Request
1200 pcs On Request 1 On Request On Request 17+20+22+ On Request On Request
Trace Tec ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

S-35390A-T8T1G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Date Format
Features
Halogen Free
Interface
Lead Spacing
Mounting Style
Mounting Type
Operating Temperature
Supplier Device Package
Supplier Package
Tape & Reel
Time Format
Type
Voltage
View Similar Products (0)

S-35390A-T8T1G Description

Short technical summary and product information.

The ABLIC S-35390A-T8T1G is a CMOS 2-wire real-time clock IC designed for low current consumption and a wide operating voltage range from 1.3V to 5.5V. This makes it suitable for various power supply configurations, including main supplies and backup batteries, contributing to extended battery life.



The IC features a built-in clock correction function, a free user register for backup memory, and an I2C-bus CPU interface. It supports an auto calendar up to the year 2099 with automatic leap year calculation. Additional features include a built-in alarm interrupter and a flag generator for low power voltage detection or power-on events.

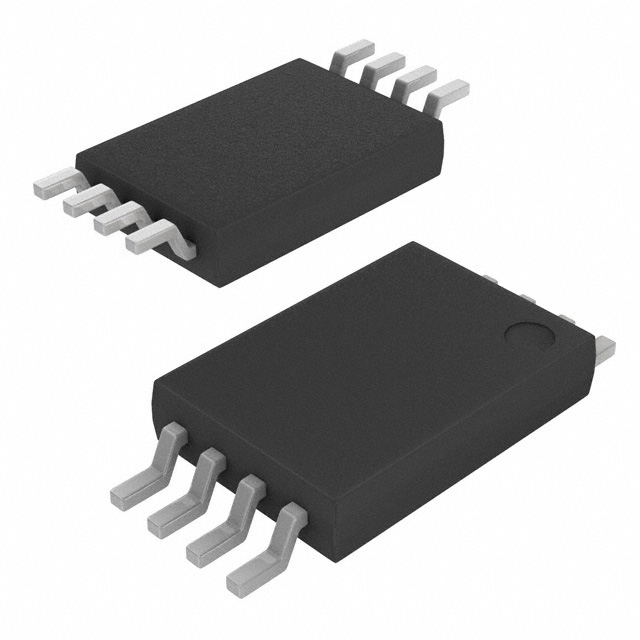

Packaged in an 8-TSSOP, the S-35390A-T8T1G is designed for surface mounting. It operates within a temperature range of -40°C to 85°C and is lead-free and halogen-free.



Applications for this real-time clock IC include mobile game devices, AV devices, digital cameras, electronic power meters, DVD recorders, TVs, VCRs, and mobile phones.

S-35390A-T8T1G Quick Information

Product Type: Real Time Clock IC
Canonical Name: S-35390A Real-Time Clock IC
Subcategory: Clock & Timer ICs

S-35390A-T8T1G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead-free, Sn 100%

S-35390A-T8T1G Estimated Pricing

Qty Low High
1+ $5.21 $5.21

Estimated market price range - modelled values for guidance only, not live distributor offers.

S-35390A-T8T1G Features

  • Operates from 1.3V to 5.5V supply voltage.
  • Low current consumption of 0.25 µA typical.
  • Features I2C and 2-wire serial interface.
  • Includes alarm and auto-calendar functions.
  • Available in an 8-TSSOP surface mount package.

S-35390A-T8T1G Applications

  • Suitable for mobile game devices.
  • Used in digital still cameras.
  • Applicable for electronic power meters.
  • Designed for mobile phones and PHS.
  • Can be used in DVD recorders.

S-35390A-T8T1G FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the S-35390A-T8T1G?

The operating voltage range is 1.3 V to 5.5 V.

What is the typical current consumption of the S-35390A-T8T1G?

The typical current consumption is 0.25 µA at VDD = 3.0 V and Ta = +25°C.

What interface does the S-35390A-T8T1G use?

It uses an I²C and 2-wire serial interface.

What is the operating temperature range for this real-time clock IC?

The operating temperature range is -40°C to 85°C.

What package type is the S-35390A-T8T1G available in?

It is available in an 8-TSSOP package.

Does the S-35390A-T8T1G have alarm and calendar functions?

Yes, it includes alarm and auto-calendar functions, supporting up to the year 2099 with automatic leap year calculation.
