| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,694 pcs
|
15694 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Resistance | |
| Coil Voltage | |
| Contact Material | |
| Lead Spacing | |
| Operate Time | |
| Rated Current | |
| Rated Voltage | |
| Release Time | |
| Terminal Type | |
| Weight |

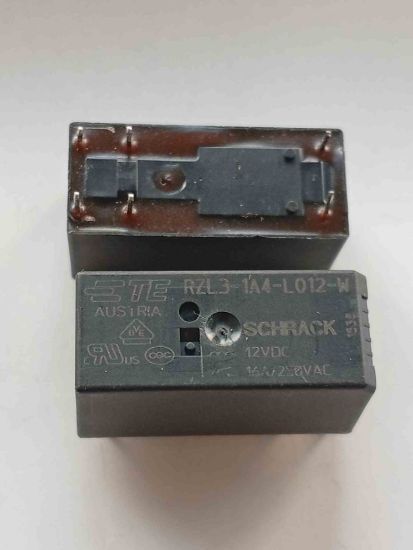

This Schrack RZL3-1A4-L012-W is a general-purpose PCB relay designed for reliable switching applications. It operates with a 12VDC coil and provides a robust contact rating of 16A at 250VAC. The relay is available with either a 1 Form C (Changeover) or 1 Form A (Normally Open) contact arrangement.
Key electrical specifications include a maximum switching voltage of 400VAC, a limiting making current of 30A for Form A contacts, and a breaking capacity of up to 4000VA. The contact material is AgNi 90/10. The relay features a coil power consumption of 530mW and an operate time of 8ms with a release time of 6ms.
Environmental and mechanical specifications include an ambient temperature range of -40 to 70°C (up to 85°C for special applications) and resistance to soldering heat up to 260°C for 10 seconds (THT). The terminal type is PCB-THT, and it has a weight of 10g. The relay is flux proof (RTII) and wash tight (RTIII).
Typical applications for this relay include household appliances, boiler control, timers, and garage door control systems. It meets IEC 61810 standards and has UL and VDE approvals.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.16 | $2.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage range is 5 to 48 VDC, with a rated voltage of 12 VDC.
The relay has a rated current of 16A at 250VAC. The breaking capacity is up to 4000VA for Form A contacts.
The standard version operates from -40 to 70°C, and special applications can operate up to 85°C.
It is available with 1 Form C (CO) or 1 Form A (NO) contact.
The RoHS status is RoHS3 Compliant.
