Mfr Part #:

RZE05DHRN

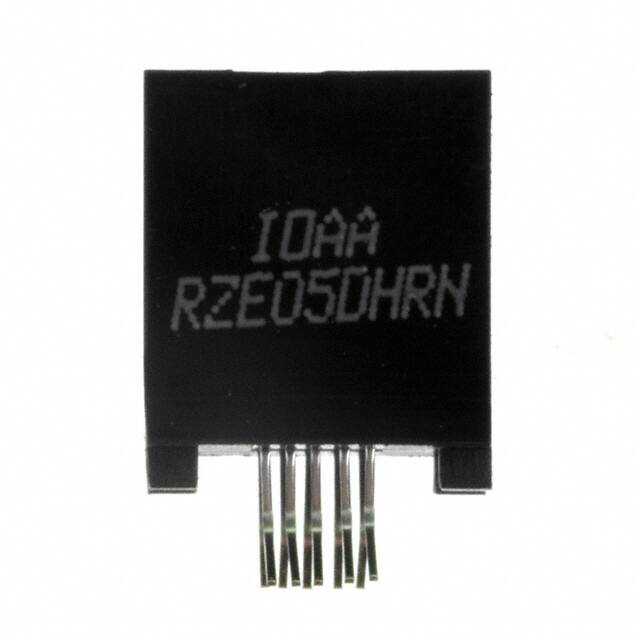

Name: RZE05DHRN
Brand: Sullins Connector Solutions
SKU: RZE05DHRN

Description:

CONN EDGE DUAL FMALE 10POS 0.039

Stock on Request

RZE05DHRN Description

Short technical summary and product information.

CONN EDGE DUAL FMALE 10POS 0.039

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

GBE05DHRD

Sullins Connector Solutions

CONN EDGE DUAL FMALE 10POS 0.039

GBE05DHRN

Sullins Connector Solutions

CONN EDGE DUAL FMALE 10POS 0.039

GBE05DHRT

Sullins Connector Solutions

CONN EDGE DUAL FMALE 10POS 0.039

RBE05DHRN

Sullins Connector Solutions

CONN EDGE DUAL FMALE 10POS 0.039

Category	Edgeboard Connectors
Manufacturer Name	Sullins Connector Solutions
Card Thickness	0.062" (1.57mm)
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Contact Material	Phosphor Bronze
Contact Type	Hairpin Bellows
Features	Card Extender
Gender	Female
Mounting Type	Board Edge, Straddle Mount
Number of Positions	5
Number of Rows	2
Operating Temperature	-65°C ~ 125°C
Pitch	0.039" (1.00mm)
Read Out	Dual
Termination	Solder
