Mfr Part #:

RZB85DHAS

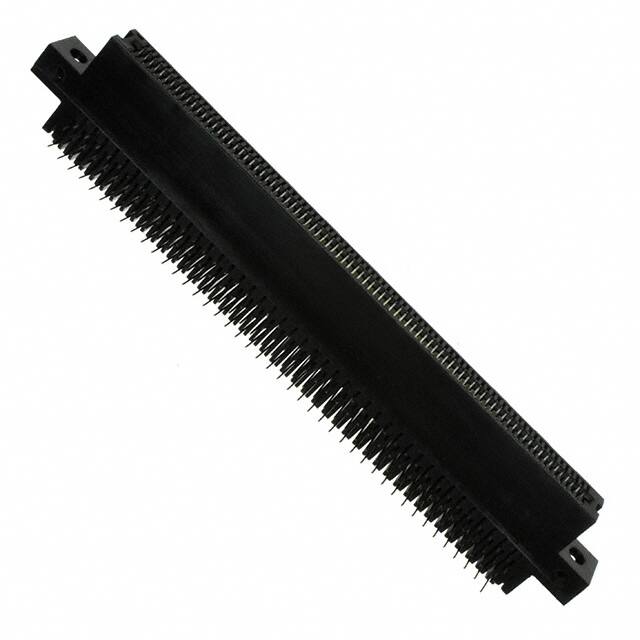

Name: RZB85DHAS
Brand: Sullins Connector Solutions
SKU: RZB85DHAS

Description:

CONN EDGE DUAL FML 170POS 0.050

Stock on Request

RZB85DHAS Description

Short technical summary and product information.

CONN EDGE DUAL FML 170POS 0.050

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

RBB85DHBS

Sullins Connector Solutions

CONN EDGE DUAL FML 170POS 0.050

RBB85DHAS

Sullins Connector Solutions

CONN EDGE DUAL FML 170POS 0.050

GBB85DHBS

Sullins Connector Solutions

CONN EDGE DUAL FML 170POS 0.050

GBB85DHAS

Sullins Connector Solutions

CONN EDGE DUAL FML 170POS 0.050

Category	Edgeboard Connectors
Manufacturer Name	Sullins Connector Solutions
Card Thickness	0.062" (1.57mm)
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Contact Material	Phosphor Bronze
Contact Type	Hairpin Bellows
Flange Feature	Side Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
Gender	Female
Mounting Type	Through Hole, Right Angle
Number of Positions	85
Number of Rows	2
Operating Temperature	-65°C ~ 125°C
Pitch	0.050" (1.27mm)
Read Out	Dual
Termination	Solder, Staggered
