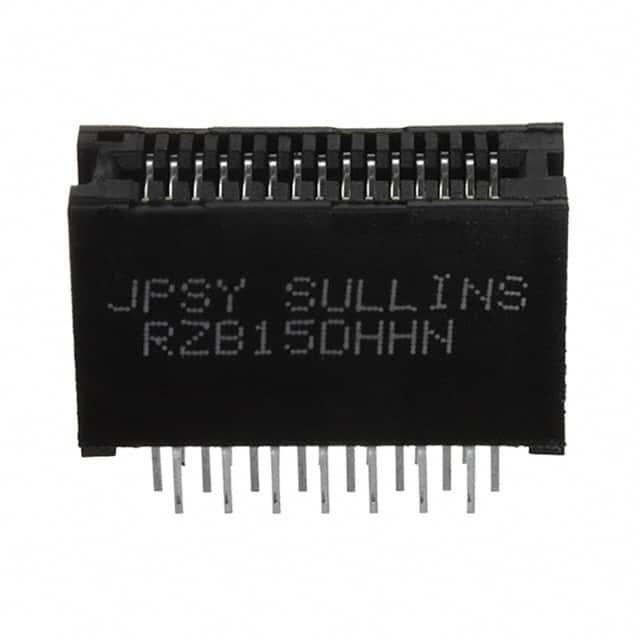

RZB15DHHN RZB15DHHN is a 30 position dual edge female card edge connector from Sullins Connector Solutions. It features a 0.050" (1.27mm) pitch, gold plated hairpin bellows contacts, and through hole staggered solder termination.
Mfr Part #:

RZB15DHHN

Available from 1 distributors
Mfr Name: Sullins Connector Solutions
Sullins Connector Solutions
RZB15DHHN is a 30 position dual edge female card edge connector from Sullins Connector Solutions. It features a 0.050" (1.27mm) pitch, gold plated hairpin bellows contacts, and through hole staggered solder termination.
✓ Total Stock: 3 pcs
$ Price Range: $5.99

RZB15DHHN Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RZB15DHHN Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Card Thickness
Card Type
Color
Contact Finish
Contact Finish Thickness
Contact Material
Contact Type
Gender
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Rows
Operating Temperature
Pitch
Read Out
Termination
Termination Style
View Similar Products (0)

RZB15DHHN Description

Short technical summary and product information.

The RZB15DHHN is a 30 position dual edge female card edge connector manufactured by Sullins Connector Solutions. It is designed for use with non-specified dual edge cards and accepts a card thickness of 0.062" (1.57mm). The connector features a dual readout configuration with two rows of contacts on a 0.050" (1.27mm) pitch.



The contacts are made of phosphor bronze with a gold finish of 10.0µin (0.25µm) thickness, utilizing a hairpin bellows contact type for reliable electrical connection. The connector body is black and the termination style is through hole with staggered solder tails.



This connector is rated for an operating temperature range of -65°C to 125°C, making it suitable for a wide variety of industrial and commercial applications. The through hole mounting provides a robust mechanical attachment to the printed circuit board.

RZB15DHHN Quick Information

Product Type: Card Edge Connector
Canonical Name: RZB15DHHN 30 Position Dual Edge Female Card Edge Connector
Subcategory: Edgeboard Connector

RZB15DHHN Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RZB15DHHN Estimated Pricing

Qty Low High
25+ $5.99 $5.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

RZB15DHHN Features

  • 30 position dual edge female connector.
  • 0.050" (1.27mm) contact pitch.
  • Gold plated hairpin bellows contacts.
  • Through hole staggered solder termination.
  • Operating temperature -65°C to 125°C.

RZB15DHHN Applications

  • Suitable for edge card connection applications.
  • Used in industrial and commercial electronics.
  • Ideal for dual readout circuit board interfaces.

RZB15DHHN FAQs

5 frequently asked questions generated from this part’s specifications.
What is the pitch of the RZB15DHHN connector?

The pitch is 0.050" (1.27mm).

How many positions does the RZB15DHHN have?

It has 30 positions (15 per row, 2 rows).

What is the mounting type for this connector?

Through hole with staggered solder termination.

What is the operating temperature range?

-65°C to 125°C.

What contact finish does the RZB15DHHN use?

Gold, 10.0µin (0.25µm) over phosphor bronze.
