| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Rating (Current) | |
| Failure Rate | |
| Mounting Type | |
| Must Operate Voltage | |
| Storage Temperature | |
| Switching Voltage | |
| Tape & Reel | |
| Termination Style |

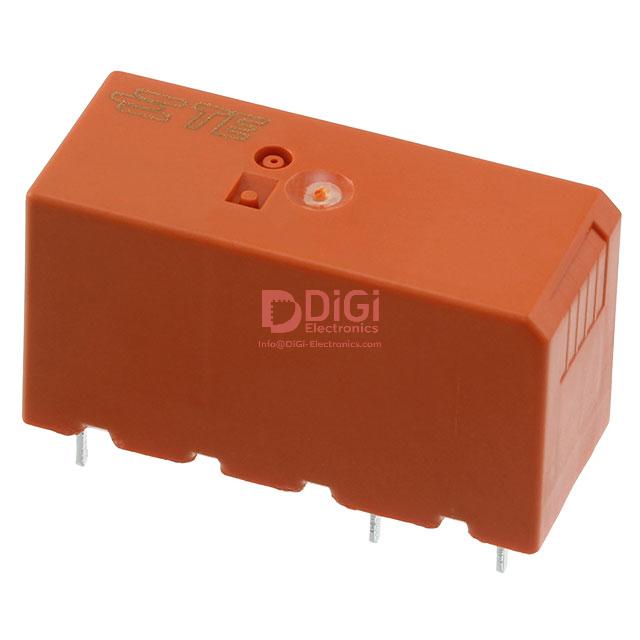

This RZ01-1C4-D024 general purpose relay from TE Connectivity Potter & Brumfield Relays is designed for various applications requiring reliable switching. It features a robust SPDT (1 Form C) contact arrangement, capable of handling up to 12A of current and switching voltages up to 400VAC.
The relay operates with a 24VDC coil and has a must-operate voltage of 16.8VDC. The coil insulation is rated for Class F. It is designed for through-hole mounting and utilizes PC pin termination style, making it suitable for standard PCB assembly processes.
Belonging to the RZ series, this active component offers dependable performance for general-purpose applications. Its specifications make it a suitable choice for power control and signal switching in electronic circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.19 | $7.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating is 12A.
The coil voltage is 24VDC.
It has an SPDT (1 Form C) contact form.
The maximum switching voltage is 400VAC.
It is designed for through hole mounting.
