Mfr Part #:

RXM3AB2BD

Name: RXM3AB2BD
Brand: Schneider Electric
SKU: RXM3AB2BD

Mfr Name: Schneider Electric

Description:

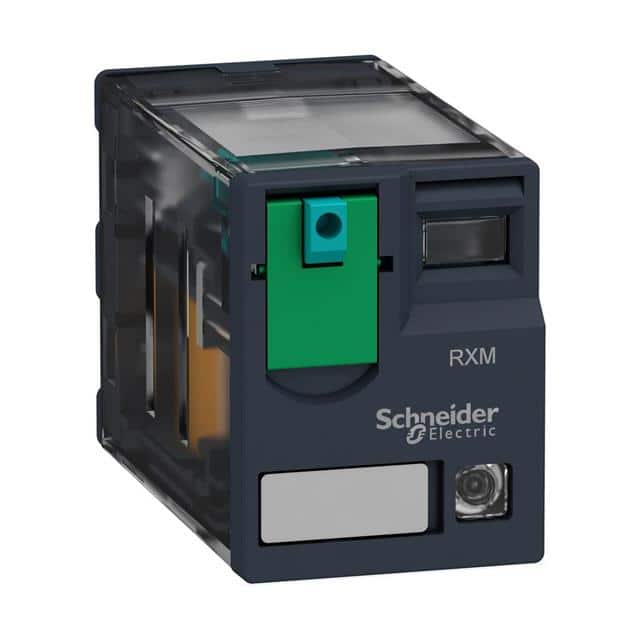

HARMONY, MINIATURE PLUG-IN RELAY

Stock on Request

RXM3AB2BD Description

Short technical summary and product information.

HARMONY, MINIATURE PLUG-IN RELAY

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Power Relays, Over 2 Amps
Manufacturer Name	Schneider Electric
Coil Current	36.9 mA
Coil Type	Non Latching
Coil Voltage	24VDC
Contact Form	3PDT (3 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	6.7 A
Features	Lighted Indicator, Test Button
Mounting Type	Socketable
Must Operate Voltage	19.2 VDC
Must Release Voltage	2.4 VDC
Operate Time	20 ms
Operating Temperature	-40°C ~ 55°C
Relay Type	General Purpose
Release Time	20 ms
Switching Voltage	250VAC, 28VDC - Max
Termination Style	Plug In
