| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

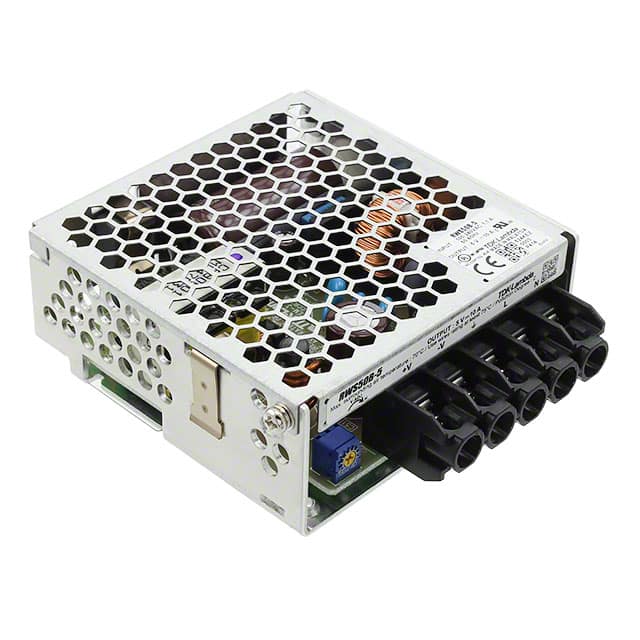

This TDK Corporation RWS50B-48/CO2 is an enclosed AC/DC converter with conformal coating, designed for ITE (Commercial) applications. It delivers 50W of power with a 48V output voltage and a current rating of 1.1A. The converter operates with an efficiency of 88% and features adjustable output, DC input capability, and universal input.
Measuring 81.5mm in length, 82.0mm in width, and 34.0mm in height, it is designed for chassis mounting. The operating temperature range is -20°C to 70°C with derating. The unit provides 3kV isolation voltage and has received CE approval.
Compliance includes RoHS3, MSL 1, and REACH unaffected status. This model is suitable for various commercial applications requiring a reliable power supply.
48V.
Enclosed, conformal coated chassis mount package.
-20°C to 70°C with derating.
88% typical efficiency.
3kV isolation voltage.
Single output (1).
81.5mm (length) x 82.0mm (width) x 34.0mm (height).
