| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage |

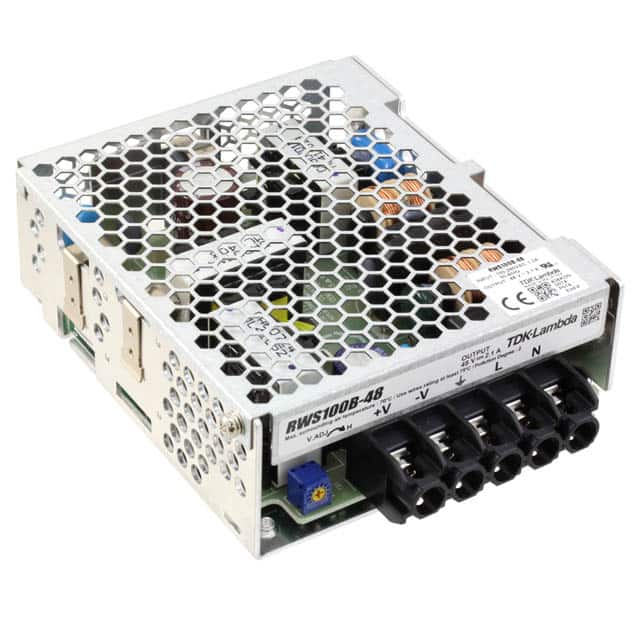

The TDK Corporation RWS100B-48/CO2 is an enclosed AC/DC converter with a power rating of 100W and an output voltage of 48V. This unit is designed for ITE (Commercial) applications and features a conformal coating for enhanced durability.
Key electrical specifications include an efficiency of 87%, an output current of 2.1A, and an isolation voltage of 3kV. The converter operates within a temperature range of -20°C to 70°C with derating. It supports adjustable output, DC input capability, and universal input.
Mechanically, the RWS100B-48/CO2 is designed for chassis mounting, with dimensions of 108.0mm in length, 94.0mm in width, and 39.0mm in height. It has a single output and is approved by CE.
Environmental compliance includes RoHS3 compliance and an MSL of 1 Unlimited. The REACH status is unaffected.
The RWS100B-48/CO2 has a power output of 100W.
The RWS100B-48/CO2 provides a 48V output.
The operating temperature range is -20°C to 70°C, with derating.
This AC DC converter is designed for chassis mounting.
The dimensions are 108.0mm x 94.0mm x 39.0mm.
The RWS100B-48/CO2 is RoHS3 compliant.
The Moisture Sensitivity Level is 1 Unlimited.
