| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

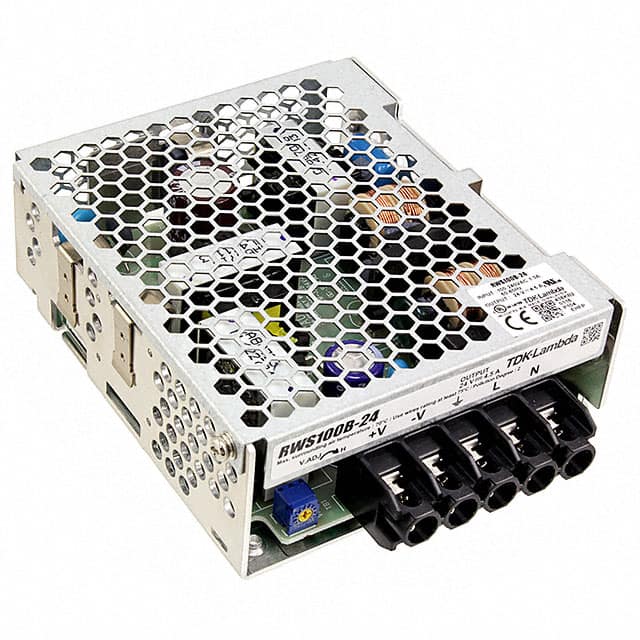

This TDK Corporation RWS100B-24/CO2 is an enclosed AC/DC converter with conformal coating, delivering 100W of power at a 24V output. It is designed for chassis mounting and operates with a universal input, offering adjustable output and DC input capability. The converter has an efficiency of 87% and an output current of 4.5A. Its operating temperature range is -20°C to 70°C with derating. The unit is approved by CE and is suitable for ITE (Commercial) applications. It features a high voltage isolation of 3kV.
The dimensions of this converter are 108.0mm in length, 94.0mm in width, and 39.0mm in height. It has a single output and is RoHS3 compliant. The Moisture Sensitivity Level (MSL) is 1 (unlimited), and it is REACH unaffected.
The output voltage is 24V DC with a maximum current of 4.5A.
The power rating is 100W.
The operating temperature range is -20°C to 70°C with derating.
It uses chassis mount.
The efficiency is 87%.
The isolation voltage is 3kV.
