| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Voltage Rating | |
| Width |

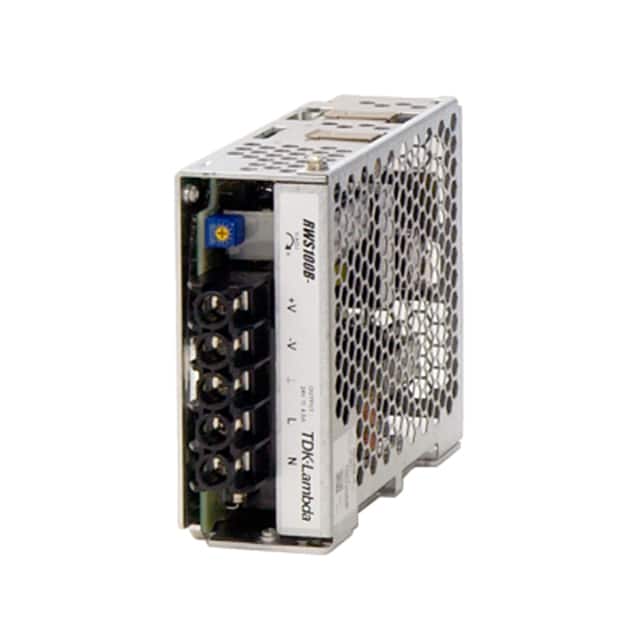

The TDK Corporation RWS100B-15 is a single-output AC/DC power supply designed for general-purpose applications. It provides a 15V output voltage with a maximum current of 6.8A, delivering a total power of 102W. This enclosed unit is designed for chassis mounting.
Key electrical specifications include an efficiency of 84% and a wide operating temperature range of -20°C to 70°C with derating. The power supply also features a voltage rating of 3 kV and meets Class B conducted and radiated EMI standards. It is certified to IEC62368-1 and UL508 standards.
This series offers features such as conservatively rated electrolytic capacitors for long field life and easier system EMC compliance. The RWS100B-15 is suitable for industrial control equipment and ITE (Commercial) applications.
The output voltage range is 13.5V to 17.25V with a nominal 15V.
The converter is designed for chassis mount and comes in an enclosed package.
The operating temperature range is -20°C to 70°C with derating.
84% typical efficiency.
150mV typical ripple and noise.
108.0mm x 94.0mm x 39.0mm.
115/230Vac.
