| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

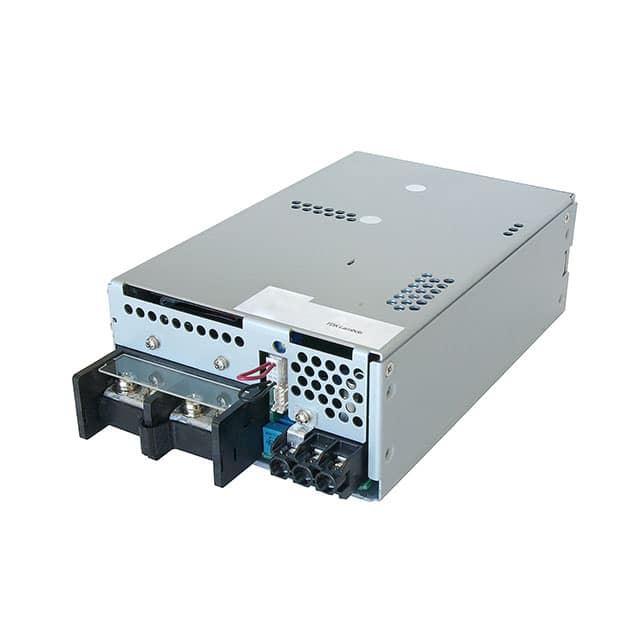

The TDK Corporation RWS1000B-48 is an enclosed AC/DC converter designed for ITE (Commercial) applications. It delivers a robust 1000W of power with a stable 48V output voltage and an efficiency rating of 88%.
This converter features adjustable output, DC input capability, Power Factor Correction (PFC), remote sense, and universal input. It is designed for chassis mounting and operates within a temperature range of -20°C to 60°C with derating. The unit provides 4kV of insulation voltage.
Key specifications include a current rating of 21A, dimensions of 198.0mm x 127.0mm x 63.0mm, and a single output. It is approved by CE and meets RoHS3 compliance standards.
The output voltage is 48V.
The output current is 21A.
The power rating is 1000W.
The operating temperature range is -20°C to 60°C with derating.
The efficiency is 88%.
The mounting type is chassis mount.
The dimensions are 198.0mm x 127.0mm x 63.0mm.
