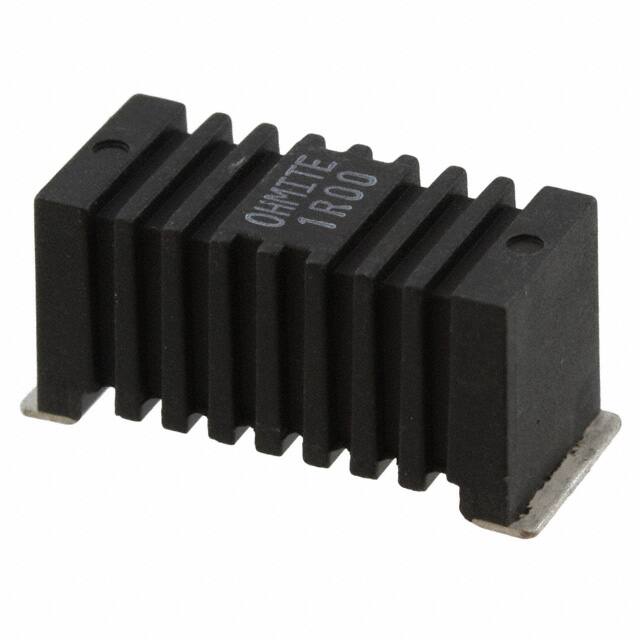

RW5S0FA1R00FE The Ohmite RW5S0FA1R00FE is a wirewound surface-mount resistor designed for high energy applications. It offers a resistance of 1 Ohm with a tight tolerance of ±1%.
Mfr Part #:

RW5S0FA1R00FE

Available from 1 distributors
Mfr Name: Ohmite
Ohmite
The Ohmite RW5S0FA1R00FE is a wirewound surface-mount resistor designed for high energy applications. It offers a resistance of 1 Ohm with a tight tolerance of ±1%.
✓ Total Stock: 20 pcs
$ Price Range: $0.02

RW5S0FA1R00FE Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RW5S0FA1R00FE Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Failure Rate
Height
Lead Style
Length
Mounting Style
Mounting Type
Number of Terminations
Operating Temperature
Power (Watts)
Power Rating
Product Type
Resistance
Technology
Temperature Coefficient
Termination Style
Tolerance
Width
View Similar Products (0)

RW5S0FA1R00FE Description

Short technical summary and product information.

This Ohmite RW5S0FA1R00FE is a high-energy wirewound resistor designed for surface-mount applications. It features a resistance value of 1 Ohm with a precise tolerance of ±1%, making it suitable for applications requiring accurate resistance values.



The resistor is rated for a power of 5W and operates within a wide temperature range from -55°C to +155°C, with a temperature coefficient of ±50ppm/°C. Its dimensions are 20.47mm in length, 9.27mm in width, and 10.31mm in height.



The component utilizes wirewound technology and has a 2-termination SMD/SMT style, suitable for PCB mounting. It is supplied in a Reel package with a standard quantity of 300 units. The RoHS status is compliant, and it has an MSL rating of 1 Unlimited.

RW5S0FA1R00FE Quick Information

Product Type: Wirewound Resistor - SMD
Series: RW5
Canonical Name: Ohmite RW5S0FA1R00FE Wirewound Resistor - SMD
Subcategory: Chip Resistor - Surface Mount

RW5S0FA1R00FE Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RW5S0FA1R00FE Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RW5S0FA1R00FE Features

  • Wirewound technology for high energy applications.
  • 1 Ohm resistance with ±1% tolerance.
  • 5W power rating for demanding circuits.
  • Wide operating temperature range: -55°C to 155°C.
  • Surface mount package for PCB integration.

RW5S0FA1R00FE Applications

  • Suitable for high energy applications.
  • Ideal for circuits requiring precise resistance.
  • Used in power supply designs.
  • Component for thermal management systems.

RW5S0FA1R00FE FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the Ohmite RW5S0FA1R00FE?

The resistance value is 1 Ohm.

What is the power rating of this resistor?

The power rating is 5W.

What is the tolerance of the RW5S0FA1R00FE resistor?

The tolerance is ±1%.

What is the operating temperature range for this component?

The operating temperature range is -55°C to 155°C.

What type of package does the RW5S0FA1R00FE come in?

It comes in a Reel package.

What is the standard package quantity for this resistor?

The standard package quantity is 300 units.
