| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
39,689 pcs
|
39689 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

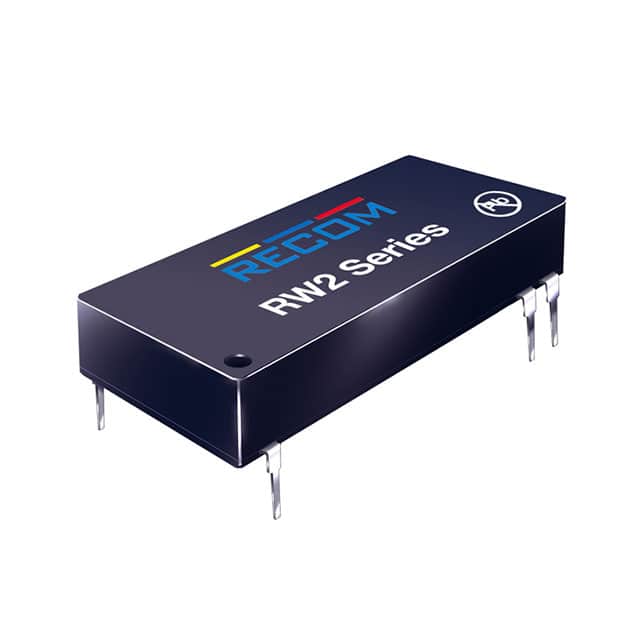

The RW2-1209D/H2/B is a 2W isolated DC-DC converter from Recom Power's RW2 series. It provides dual regulated outputs of ±9V at 111mA each, with a typical efficiency of 78%. The converter operates from a nominal 12V input with a 9V to 18V range.
Designed for space-constrained applications, it is housed in a Mini DIP16 through-hole package measuring 22.1mm x 12.6mm x 8.5mm. The /H2 option provides 2000VDC input-to-output isolation. Features include short-circuit protection, low ripple and noise (50mVp-p), and a wide operating temperature range of -40°C to +85°C.
The converter is RoHS3 and REACH compliant, and is certified to IEC/EN60950-1. It is suitable for ITE (commercial) and medical equipment where isolated power is required. The minimum load is 10% of full load, and it can drive capacitive loads up to ±680µF.
| Qty | Low | High |
|---|---|---|
| 1+ | $23.67 | $23.67 |
| 5+ | $22.79 | $22.79 |
| 10+ | $21.97 | $21.97 |
| 22+ | $21.94 | $21.94 |
| 44+ | $21.77 | $21.77 |
| 110+ | $21.59 | $21.59 |
| 264+ | $21.36 | $21.36 |
| 506+ | $21.20 | $21.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 9V to 18V with a nominal input of 12V.
It is available in a Mini DIP16 through-hole package with 6 leads.
The operating temperature range is -40°C to +85°C.
Yes, it is RoHS3 compliant as per the datasheet.
The isolation voltage is 2000VDC with the /H2 option.
The output is dual ±9V with each output providing 111mA.
Typical efficiency is 78% at nominal input and full load.
