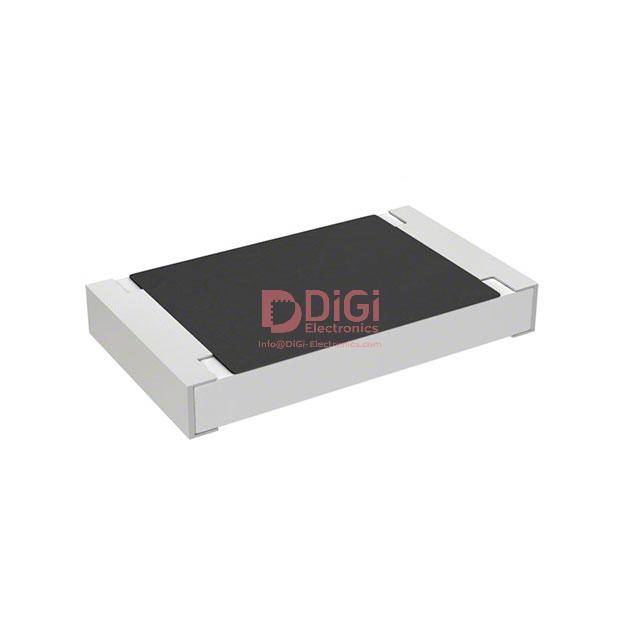

RW1S0BAR240J The Ohmite RW1S0BAR240J is a wirewound chip resistor designed for surface mounting. It features a resistance of 240mOhm with a 5% tolerance and a 1W power rating.
Mfr Part #:

RW1S0BAR240J

Available from 1 distributors
Mfr Name: Ohmite
Ohmite
The Ohmite RW1S0BAR240J is a wirewound chip resistor designed for surface mounting. It features a resistance of 240mOhm with a 5% tolerance and a 1W power rating.
✓ Total Stock: 8 pcs
$ Price Range: $0.02

RW1S0BAR240J Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
8 pcs
On Request
8 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RW1S0BAR240J Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Height
Lead Style
Length
Number of Terminations
Operating Temperature
Power (Watts)
Resistance
Supplier Device Package
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RW1S0BAR240J Description

Short technical summary and product information.

This Ohmite RW1S0BAR240J is a wirewound chip resistor suitable for surface mount applications. It offers a resistance value of 240 milliohms with a tolerance of ±5% and a power rating of 1W.



The operating temperature range for this component is -55°C to 150°C, with a temperature coefficient of ±90ppm/°C. The resistor has a 2512 J-lead package type and features a current sense capability.



Key dimensions include a height of 3.58mm, a length of 6.25mm, and a width of 3.45mm. The supplier device package is described as SMD J-Lead, Pedestal. This component has 2 terminations.



Environmental compliance includes RoHS3 compliance, an MSL of 1 Unlimited, and REACH unaffected status. These specifications make it suitable for various electronic designs requiring precise current sensing.

RW1S0BAR240J Quick Information

Product Type: Chip Resistor - Surface Mount
Canonical Name: Ohmite RW1S0BAR240J Wirewound Resistor
Subcategory: Surface Mount Resistor

RW1S0BAR240J Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RW1S0BAR240J Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RW1S0BAR240J Features

  • Wirewound construction for current sensing.
  • 1W power rating at 240 milliohms resistance.
  • ±5% tolerance and ±90ppm/°C temperature coefficient.
  • 2512 J-lead package for surface mounting.
  • Operates from -55°C to 150°C.

RW1S0BAR240J Applications

  • Suitable for current sensing applications.
  • Used in power management circuits.
  • Ideal for high-power density designs.
  • Component for industrial control systems.

RW1S0BAR240J FAQs

5 frequently asked questions generated from this part’s specifications.
What is the resistance value of the RW1S0BAR240J resistor?

The resistance value is 240 milliohms.

What is the power rating of the RW1S0BAR240J resistor?

The power rating is 1W.

What is the tolerance of the RW1S0BAR240J resistor?

The tolerance is ±5%.

What is the operating temperature range for the RW1S0BAR240J?

The operating temperature range is -55°C to 150°C.

What type of package does the RW1S0BAR240J use?

It uses a 2512 J-Lead package.
