| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Features | |
| Fluid Type | |
| Halogen Free | |
| Inner Diameter | |
| Length | |
| Material | |
| Operating Temperature | |
| Recovered Wall Thickness | |
| SVHC Present | |
| Shelf Life | |
| Shrink Temperature | |
| Shrinkage Ratio | |
| Storage | |
| Storage Temperature | |
| Type | |
| Voltage |

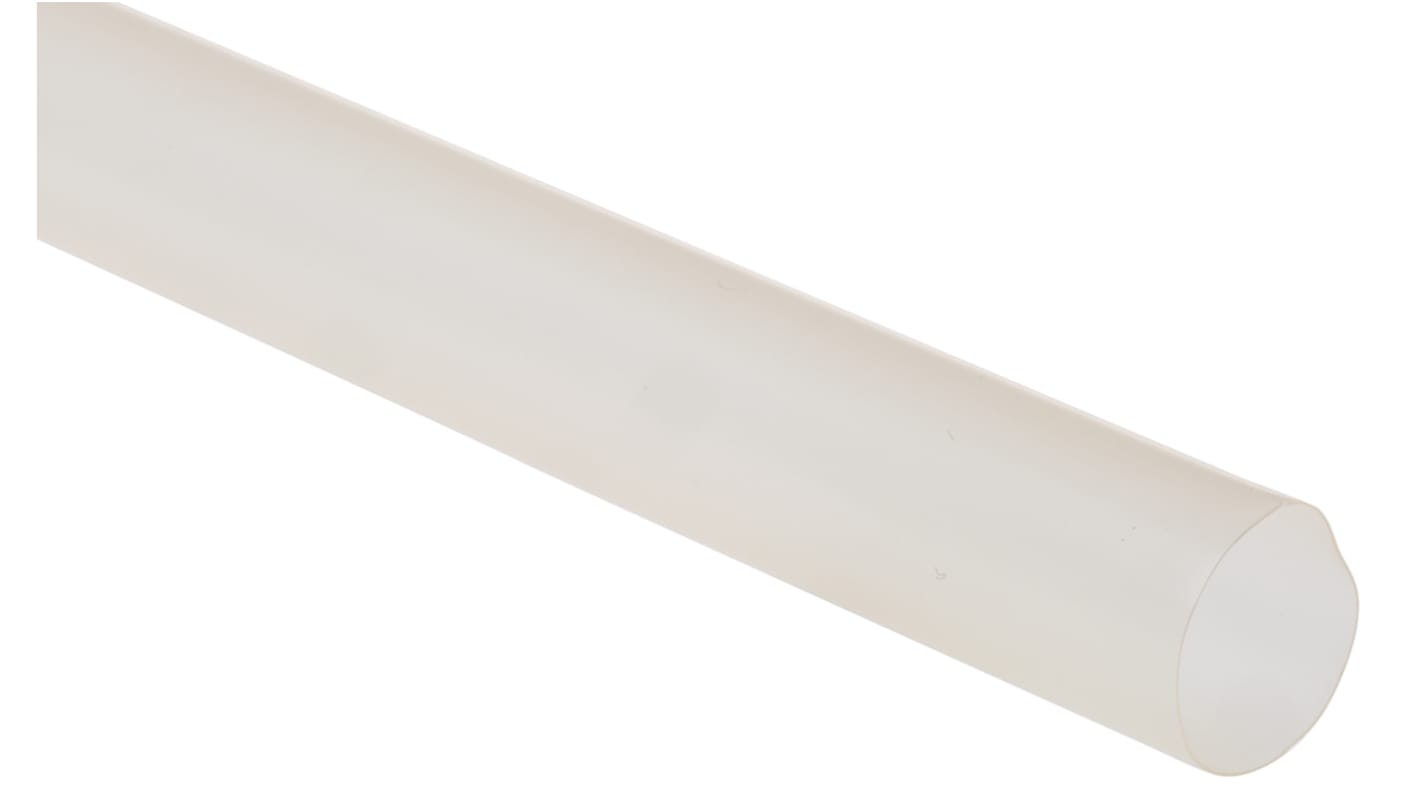

This TE Connectivity RW-175 heat shrink tubing, part number RW-175-3/8-X-STK, offers a 2:1 shrink ratio and a clear color. Constructed from crosslinked fluoropolymer, it provides semi-rigid protection and is suitable for a wide operating temperature range of -55°C to 175°C.
The tubing has a recovered inside diameter of 4.75 mm and an expanded inside diameter of 9.53 mm. Its nominal recovered wall thickness is 0.33 mm. The material is resistant to abrasion, chemicals, cut-through, and fluids, making it ideal for applications requiring robust protection.
Packaged in sticks, this tubing meets low outgassing requirements and is highly flame-retardant. It is designed for global application and offers excellent mechanical resistance and strain relief properties.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The shrink ratio is 2:1.
The operating temperature range is -55°C to 175°C.
It is resistant to abrasion, cut-through, fluids, mechanical damage, and strain relief.
The maximum recovered inside diameter is 4.75 mm.
The minimum shrink temperature is 155°C.
Yes, it is highly flame-retardant.
